12081504006 Plug - Internal Thread | Red

#NESPLTEFEN37

Product Description

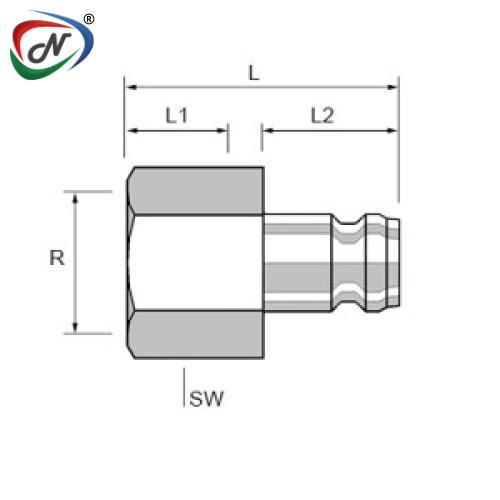

The 12081504006 is a Tefen quick release plug with BSPT 1/4 internal (female) threads, designed for rapid and secure connection in pneumatic and fluid systems. Made of acetal, it features a red body for easy identification. It locks into a corresponding Tefen socket using a movable sleeve. When disconnected, the socket’s internal valve shuts off automatically to prevent leaks. Its compact length (28.6 mm) and 17 mm wrench size make it practical for tight setups.

Main Features (5 Points)

BSPT 1/4 internal thread — for secure, compatible pipe connections.
Quick-release design — enables fast, tool-free engagement with matching Tefen sockets.
Acetal construction — offers chemical resistance, low friction, and durability.
High pressure rating — supports up to 14bar (200psi) at 20°C.
Wide temperature tolerance — functions reliably between 20?°C and +110°C.

Main Specifications:

Unit type	Metric
Material	Reinforced Polypropylene
Thread Type	BSPP
Color	Blue
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C
Tube OD mm	8
M BSPP	1/4''
L mm	27.1
L1 mm	33.2
SW mm	14
O Ring Material	NBR
