12016904028 BSPT Reducing Threaded Elbow Blue

#NESPLTEFEN48

Product Description

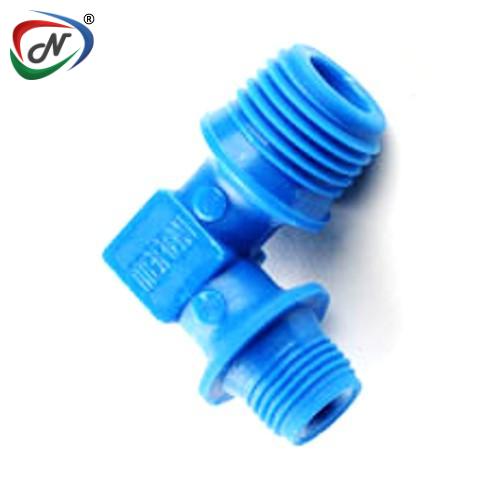

The 12016904028 BSPT Reducing Threaded Elbow from TEFEN is a compact, blue-coloured male elbow fitting that joins two pipes of different sizes at a 90° angle using tapered BSPT threads. It reduces from a 1/4″ inlet to a 1/8″ outlet, providing a secure transition while changing flow direction. Its durable construction enables reliable, leak-resistant connections in fluid or pneumatic systems. Ideal for plumbing, pneumatic or industrial piping where size reduction and angled flow are needed.

Main Features:

Size-reducing elbow — reduces pipe diameter from 1/4″ to 1/8″ while changing flow direction.
90° angled connection — helps redirect flow in compact or constrained piping layouts.
Male BSPT tapered threads — ensures tight, pressure-resistant, leak-proof sealing when properly installed (preferably with PTFE tape).
Durable polymer construction (nylon/ polypropylene) — provides chemical resistance and suitability for pneumatic, fluid or general piping systems.
Compact & versatile use — suitable for plumbing, pneumatic, hydraulic, or industrial fluid systems — especially where a smaller-diameter pipe must connect at an angle.

Main Specifications:

Unit type	Imperial
Material	Nylon 66
Thread Type	BSPT
Color	Blue
Temperature Range	‎-20° C up to +110° C (–5° F up to +230° F)
Working Pressure	Up to 14 bar (200 psi)
C	10 mm
Carton Quantity	400
L mm	26.4
L1 mm	24.4
M BSPT	1/4″
C1	8 mm
R1	1/8″
M1 BSPT	1/8″
