112256912128 NPT Male Elbow Hose Connector | Navy Blue

#NESPLTEFEN45

Product Description

112256912128 NPT Male Elbow Hose Connector | Navy Blue

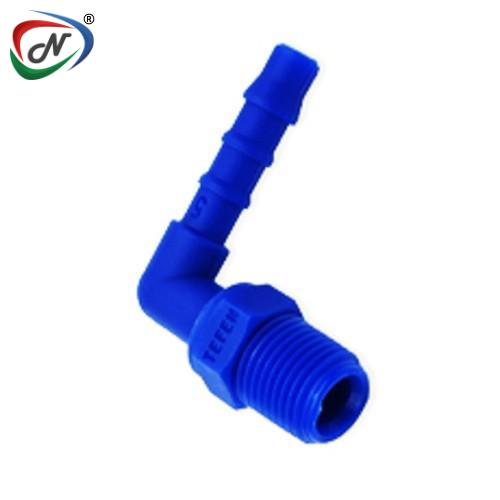

The Tefen 112256912128 NPT Male Elbow Hose Connector is a 90° elbow fitting with a male NPT thread on one end and a hose-tail barb on the other — ideal for connecting flexible hoses to threaded ports at an angle. Made of durable Nylon 66 (or equivalent polymer), it supports compressed air, water, oils or general fluids. It handles working pressures up to 14 bar (200 psi) at 20 °C and reliably operates across –20 °C to +110 °C. Its elbow design helps conserve space and enables secure, leak-resistant hose routes, making it useful for pneumatic, irrigation or fluid-transfer systems.

Main Features:

90° elbow configuration — allows directional change in hose routing, useful for tight or compact installations.
Male NPT threaded end + hose-barb tail — enables stable connection to a threaded port while securing flexible hose.
High-strength Nylon (e.g. Nylon 66) — provides good chemical resistance, durability, and long service life.
Rated for up to 14 bar (200 psi) at ambient temperature (20 °C) — suitable for moderate-pressure fluid or air applications.
Wide operating temperature range (–20 °C to +110 °C) — works reliably under varied environmental or operational conditions.

Main Specifications:

Unit type	Imperial
Material	Nylon 66
Thread Type	NPT
Color	Navy Blue
Temperature Range	-20° C up to +110° C (–5° F up to +230° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C
D	19 mm
C	31 mm
Carton Quantity	200
L mm	56.6
L1 mm	52.8
M NPT	1/2"
Tube ID inch	3/4"
