PM450813E - 8 MM TUBE OD X 3/8

PM450813E - 8 MM TUBE OD X 3/8" BSP THREAD FEMALE ADAPTOR

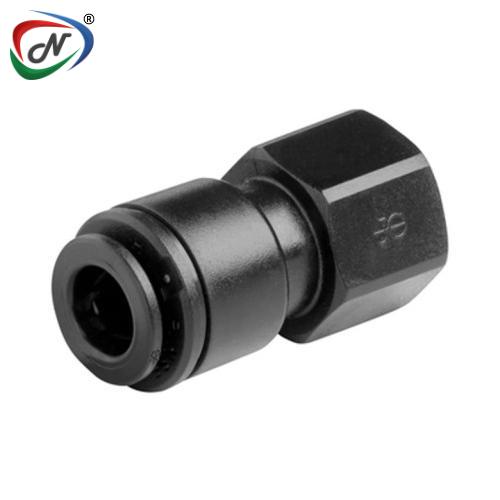

PM450813E – John Guest 8 mm Tube OD × 3/8" BSP Female Adaptor

The John Guest PM450813E Female Adaptor provides a quick, secure transition between an 8 mm outside-diameter tube and a 3/8-inch female BSP threaded connection.

The fitting combines John Guest push-fit technology with a female threaded port, allowing compatible equipment, valves and threaded components to be connected to metric tubing. Its push-fit mechanism creates an instant connection without hot work or specialised assembly tools.

Manufactured from rigid black acetal copolymer with a food-grade sealing O-ring, the adaptor is designed for compatible potable-liquid, foodstuff, beverage-dispense, air, inert-gas and vacuum applications.

Main Features:

• Connects 8 mm OD tubing to a 3/8" BSP male threaded component
• Female BSP threaded connection
• Instant push-fit tube connection
• No special installation tools required
• Connects, disconnects and reconnects quickly
• Secure collet mechanism grips the tube without significantly restricting flow
• Leak-tight internal O-ring seal
• Corrosion-resistant acetal construction
• Resistant to scale accumulation
• Suitable for compatible potable liquids and foodstuffs
• Suitable for air, vacuum and approved inert-gas applications
• Compatible with LLDPE plastic tubing and suitable soft-metal tubing
• Optional locking clip can help prevent accidental tube disconnection
• BSI and WRAS listed by the manufacturer
• Two-year manufacturer guarantee, subject to applicable terms

Technical Specifications:

The stated pressure limits are general ratings published for the John Guest 4–8 mm PM fitting range. The complete system must also remain within the pressure and temperature limits of the connected tubing, threaded component and transported medium.

Main Applications:

The PM450813E may be used in compatible:

• Potable-water installations
• Beverage-dispensing equipment
• Food and liquid transfer systems
• Coffee and beverage machines
• Water coolers and dispensers
• Beer-dispense systems
• N₂, CO₂ and approved mixed-gas dispense lines
• Pneumatic systems
• Vacuum lines
• OEM machinery and equipment
• Commercial catering equipment
• Laboratory or light-industrial fluid systems
