NESPL SOLD OUT SWITCH-NESPLF08

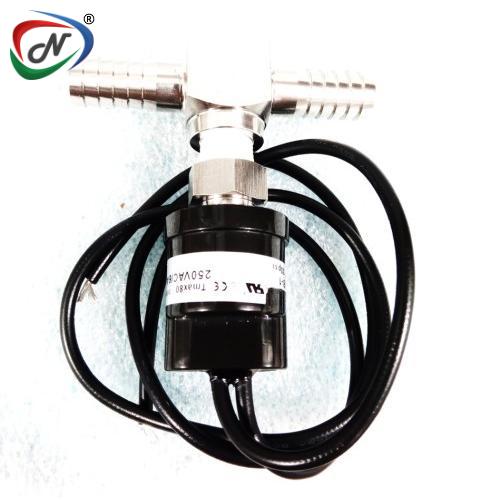

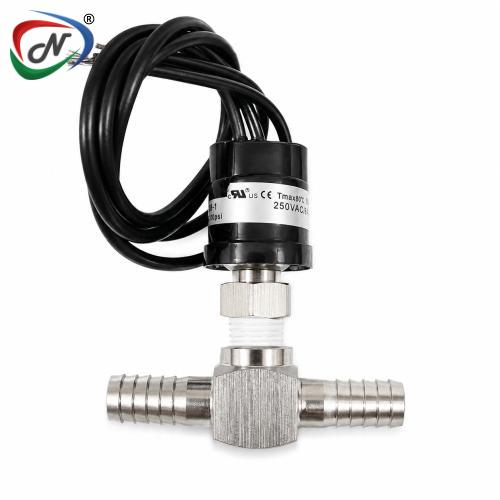

NESPLF08 30 PSI Sold-Out Switch with S.S. Connector & 30cm Wire

The NESPLF08 Sold-Out Switch is a pressure-sensing switch designed for compatible beverage dispensing and fluid-handling equipment. It uses a 30 PSI pressure setting and SPST-NC (Single Pole, Single Throw – Normally Closed) electrical configuration to provide a switching signal according to system pressure conditions.

In beverage dispensing systems, sold-out sensing can be used to identify when a connected product or ingredient supply is depleted and provide a signal to the equipment control system. Pressure/vacuum-based sold-out sensing is an established approach in beverage equipment.

The NESPLF08 incorporates a stainless-steel connector and 18 AWG, 30 cm electrical lead, providing a convenient assembly for installation in compatible commercial beverage equipment.

Main Specifications:

The 30 PSI, SPST-NC, stainless-steel connector, 18 AWG and 30 cm specifications are directly supported by the available NESPLF08 record.

Main Features:

• 🎯 30 PSI Pressure Setting
• 🔌 SPST-NC Switching
• 🥤 Sold-Out Detection
• 🛡️ Stainless-Steel Connector
• ⚡ 18 AWG Wiring
• 📏 30 cm Wire Length
• ⚙️ Equipment Integration
• 🔧 Replacement Component

Main Applications:

🥤 Soft Drink Dispensing Systems
🥤 Post-Mix Beverage Dispensers
🧃 Beverage Dispensing Equipment
⚙️ Commercial Beverage Machines
🔧 Beverage Equipment Service & Repair
📟 Pressure-Sensing Control Systems
🏭 OEM Beverage Equipment
🔄 Replacement Sold-Out Detection Systems

How It Works

In a typical sold-out sensing arrangement, a pressure/vacuum-sensitive switch detects a change in the fluid-supply condition. This signal can then be used by the equipment to identify an empty product source and respond appropriately—for example, stopping dispensing, disabling a selection or generating a sold-out indication.

For the NESPLF08 specifically, the confirmed switching specification is SPST-NC with a 30 PSI pressure setting.
