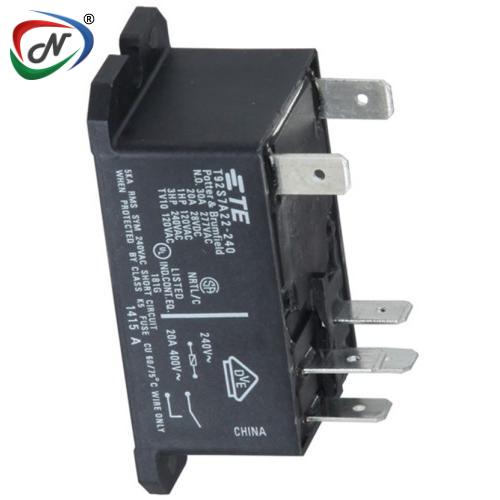

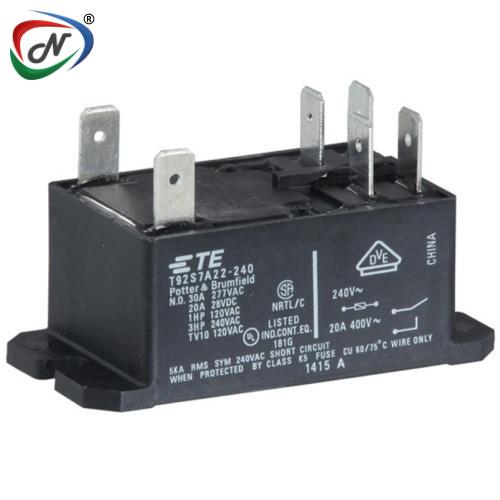

Door Relay, DPST, CAT Series P/N. WINPS2991

#NSSP003580

Product Description

Door Relay, DPST, CAT Series P/N. WINPS2991

T92 Series relays are available in DPST or DPDT contact configurations and have a switching current of 30A. There are two types of PCB and panel mount relays available: dust-proof plastic cases (part numbers starting T92P) and wash tight, tape sealed plastic cases (part numbers starting T92S).
30A DPST- NO & DPDT Switching capabilities
New screw terminal version
Operating Temperature Range: -40 ? +65°C
Contact Material AgCdO

MAIN SPECIFICATIONS:

Attribute	Value
Brand	TE Connectivity
Coil Voltage	240 V ac
Coil Resistance	3.8 k?
Contact Configuration	DPNO
Mounting Type	Flange Mount
Switching Current	30 A
Terminal Type	Quick Connect
Number of Poles	2
Height	37.97 mm
Length	68.58 mm
Series	T92
Depth	34.54 mm
