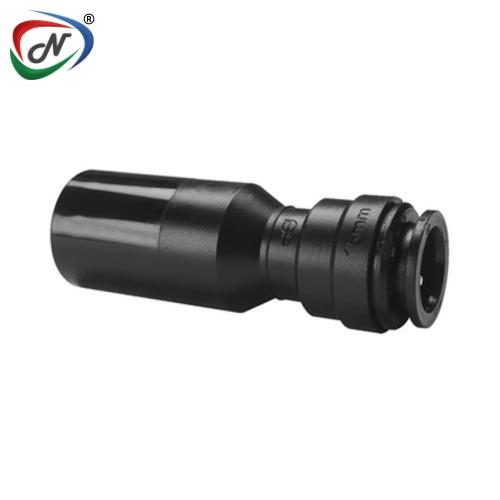

PM062822E-REDUCER 28 X 22 MM

#NSSP008487

Product Description

PM062822E-REDUCER 28 X 22 MM

Effortlessly and swiftly connects two pipes of differing sizes.

The John Guest reducer push-fit fitting links two pipes with unequal connection sizes. It is quick and easy to install, allowing John Guest Air and Pneumatics to create an immediate connection and an airtight seal without requiring tools, hot works, or sealing agents. Air piping systems can be established and installed 50% faster than conventional methods.

The innovative collet locking mechanism securely and firmly holds the pipe in position without causing deformation or impeding flow. Additionally, the fittings are completely demountable, minimizing system downtime during maintenance and facilitating quick and easy modifications or extensions of systems.

Constructed from durable engineered plastic, the fittings are compatible with John Guest nylon, powder-coated aluminum, or LLDPE tubing, as well as copper, PEXa, and other soft metal pipe materials.

Main Features:

Robust acetal copolymer fitting equipped with a nitrile O-Ring.
Sealed connection offering excellent flow properties.
Quick push-fit connection that can be disassembled without the need for tools.
Reliable collet cover that safeguards against unintentional disconnection.
Appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.
Perfect for applications involving air, inert gases, and vacuum.
Food-grade fitting that is safe for use with drinking liquids.
Compatible with both soft metal and plastic pipes/tubing.

Main Specifications:

SKU	Description	Stem OD mm	Pipe OD mm	Quantity per bag	Quantity per box
PM061510E	Reducer 15 × 10mm	15	10	10	200
PM061512E	Reducer 15 × 12mm	15	12	10	100
PM061815E	Reducer 18 × 15mm	18	15	10	100
PM062215E	Reducer 22 × 15mm	22	15	10	50
PM062218E	Reducer 22 × 18mm	22	18	10	50
PM062815E	Reducer 28 × 15mm	28	15	10	50
PM062822E	Reducer 28 × 22mm	28	22	10	50
