MM012808N BRASS STRAIGHT ADAPTOR 28 MM X 1" MBSP

#NSSP008486

Product Description

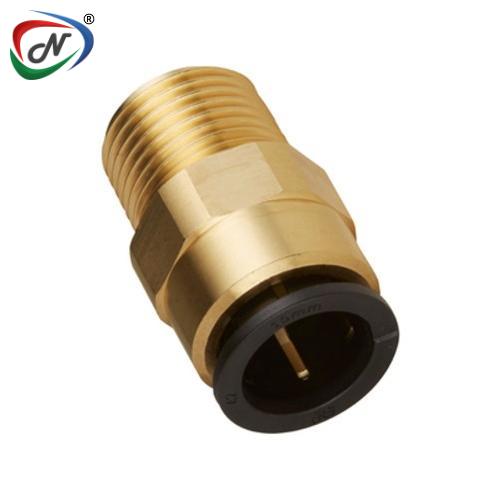

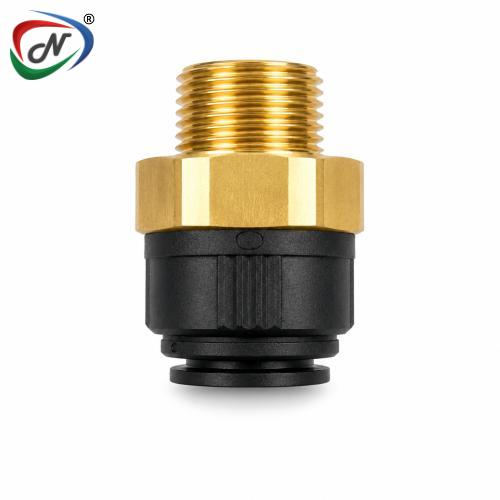

MM012808N BRASS STRAIGHT ADAPTOR 28 MM X 1" MBSP

Quickly and easily converts metric to a BSP type thread connection.

John Guest brass straight adaptor (MBSP) push-fit fitting connects metric to FBSP type thread connections. Fast and simple to install, John Guest Air and Pneumatics creates an instant connection and airtight seal without the need for tools, hot works or sealing agents. Air piping systems can be set up and installed 50% quicker than traditional methods.
The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are also fully demountable, reducing system downtime during maintenance and making it quick and easy to modify or extend systems.
Designed in brass, fittings are compatible with John Guest nylon, powder coated aluminium or LLDPE tubing, as well as copper, PEXa and other soft metal pipe materials.

Main Features:

Transforms a metric push-fit connection into MBSP.
Brass fitting equipped with a nitrile O-Ring.
Provides an airtight connection with excellent flow properties.
Allows for an instant push-fit connection that can be disassembled without tools.
The secure collet cover ensures protection against accidental disconnection.
Appropriate for air and pneumatic piping systems operating up to 10 bar.
Perfect for applications involving air, inert gases, and vacuum.
Food-grade fitting that is suitable for drinking water.
Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	BSP ″	Quantity per bag	Quantity per box
MM011504N	Brass Straight Adaptor 15mm × 1⁄2″ MBSP	15	1⁄2	5	100
MM012206N	Brass Straight Adaptor 22mm × 3⁄4″ MBSP	22	3⁄4	10	50
MM012808N	Brass Straight Adaptor 28mm × 1″ MBSP	28	1	5	20
