RLFP222202D Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump

#NSSP004085

Product Description

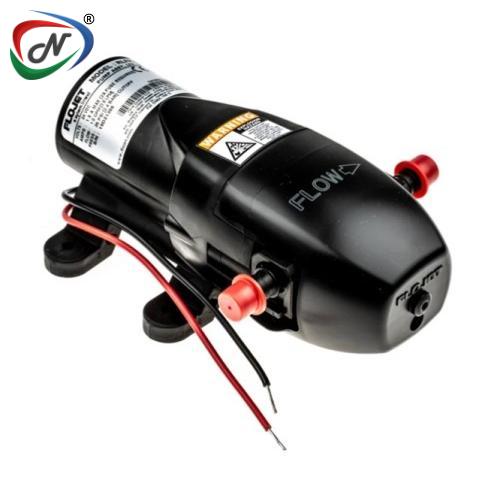

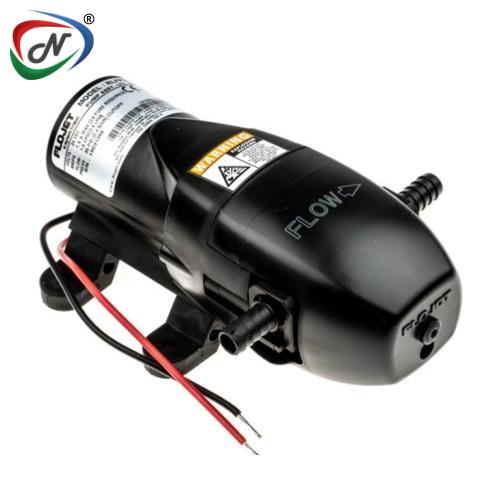

RLFP222202D Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump

RLFP222202D - 24V -1.0 GPM S/E SW35 PB Pump BEVJET LOW FLOW COMPACT DIAPHRAGM PUMP WITH 3/8 BARB PORTS

The Xylem Flojet ultra-compact diaphragm positive displacement pump employs an innovative duplex configuration to provide flow and pressure equivalent to significantly larger pumps.
With a maximum flow rate of 3.8L/min, it efficiently operates. Additionally, the pump features a built-in pressure switch that automatically initiates and halts the pump's operation upon opening and closing of the discharge valve.
This versatile pump is ideal for handling water and light water-based chemicals.

Attention:

Please refrain from utilizing this product with volatile low flash point solvents or fuels. Additionally, it is not suitable for handling flammable liquids or for usage in an explosive environment.

Main Features:

The voltage rating for the supply is 24VDC.
The power input is 30W.
The maximum pressure for operation is 2.4bar.
The highest temperature the fluid can reach is 43°C.
It has the ability to self-prime up to 0.7m.
The pump can be positioned above the liquid level.
With its duplex diaphragm design, it can run dry for an extended period without any harm.
It is equipped with built-in thermal overload protection.
It has a low amp draw, making it suitable for battery-powered applications.
The pumps can be installed above the liquid level.
