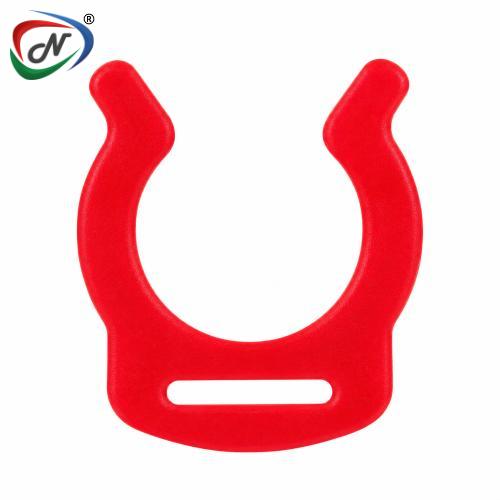

John Guest PIC1812R – 3/8″ Collet Locking Clip

John Guest PIC1812R – 3/8″ Collet Locking Clip

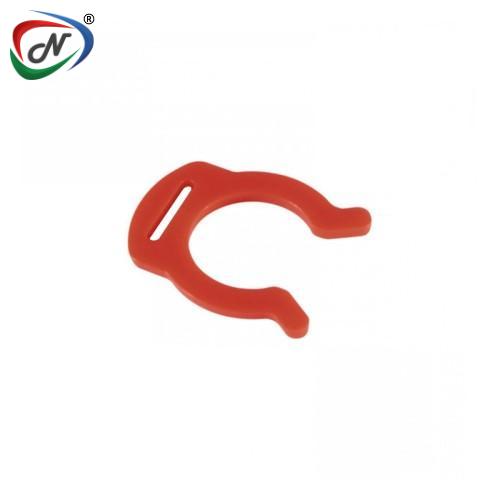

The John Guest PIC1812R Locking Clip is an accessory for compatible 3/8″ tube OD John Guest standard push-fit fittings. It fits beneath the fitting’s collet and holds it in the locked position, helping prevent accidental release of the connected tubing. The clip can be removed when the connection needs to be dismantled for servicing.

Main Features:

• Secure collet retention: Helps prevent accidental disconnection by restricting movement of the release collet.
• 3/8″ size: Designed for compatible fittings accepting tubing with a 3/8″ outside diameter.
• Simple installation: Clips into position after the tubing is fully inserted.
• Removable design: Allows access to the collet when intentional tube removal is required.
• Standard fitting compatibility: Intended for John Guest fittings using standard push-fit technology.

Technical Specifications:

Manufacturer packaging quantities are reference quantities; confirm the sales pack size when ordering.

Main Applications:

Suitable for securing compatible John Guest tubing connections in drinks dispensing and water-treatment installations. Selection should be based on the exact fitting and tube size used in the equipment.

Installation and Compatibility

1.    Fully insert the tubing into the compatible push-fit fitting.

2.    Check that the tube is securely engaged.

3.    Fit the locking clip beneath the collet to hold it in position.

4.    Before disconnecting tubing, isolate and depressurise the system, remove the clip, and follow the fitting manufacturer’s release procedure.

Important: Install the clip only after full tube insertion to avoid scraping the tubing. John Guest specifies that these locking clips are not designed for stem adapters used in swivel combinations.
