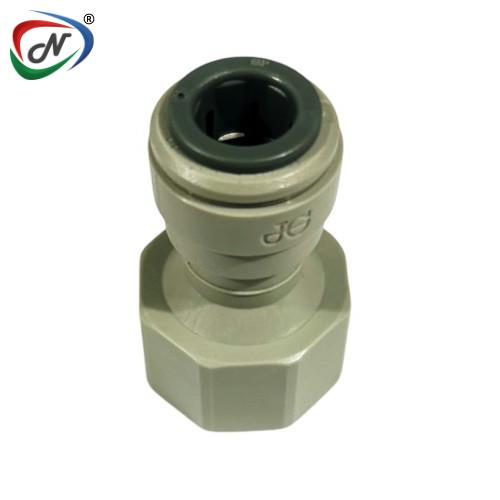

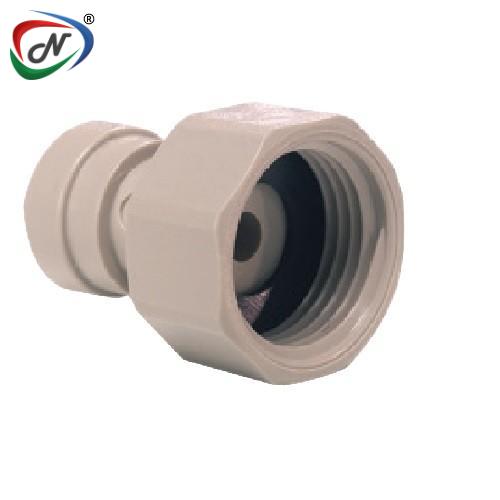

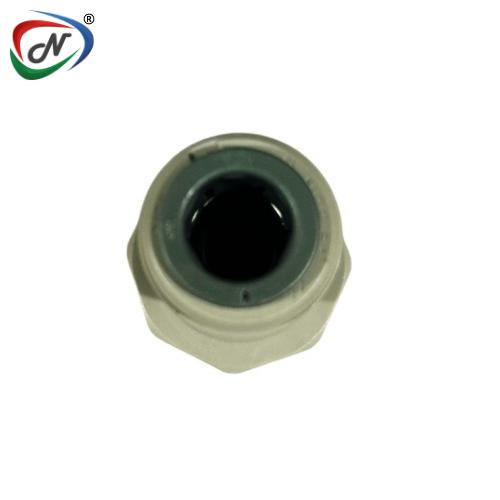

PI451214FS- 3/8" X 1/2" BSP THREAD FEMALE ADAPTER -FLAT END

#NSSP003435

PI451214FS- 3/8" X 1/2" BSP THREAD FEMALE ADAPTER -FLAT END

Main Features:

Robust acetal copolymer fitting equipped with a nitrile O-Ring
Provides an airtight connection with enhanced flow properties
Facilitates an immediate push-fit connection that can be disassembled without tools
A secure collet cover ensures protection against unintentional disconnection
Appropriate for air and pneumatic piping systems operating up to 10 bar
Well-suited for applications involving air, inert gases, and vacuum
Food-grade fitting designed for use with potable liquids
Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD "	BSP "	Quantity per bag	Quantity per box	Accreditations
PI451014FS	Female Adaptor (BSP thread - Flat End) 5/16" × 1/2"	5/16	1/2	10	150	BSI
PI451015FS	Female Adaptor (BSP thread - Flat End) 5/16" × 3/8"	5/16	3/8	10	150	BSI
PI451213S	Female Adaptor (BSP thread - Flat End) 3/8" × 3/8"	3/8	3/8	10	150	BSI
PI451214FS	Female Adaptor (BSP thread - Flat End) 3/8'' × 1/2"	3/8	1/2	10	150	BSI
PI451215FS	Female Adaptor (BSP thread - Flat End) 3/8" × 5/8"	3/8	5/8	10	150	BSI
PI451613S	Female Adaptor (BSP thread - Flat End) 1/2'' × 3/8"	1/2	3/8	10	150	BSI
PI451615FS	Female Adaptor (BSP thread - Flat End) 1/2'' × 5/8"	1/2	5/8	10	150	BSI
