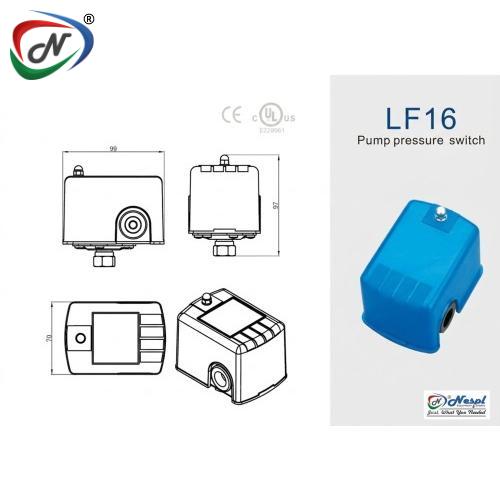

NESPL-LF16 - Pump Pressure Switch

NESPL Well Water Pump Pressure Switch LF16 40-60 PSI

NESPL-LF16 - Pump Pressure Switch

•       Silver Finish Base
•       1/4'' NPT Female
•       Pre Range ON 60
•       OFF 80PSI

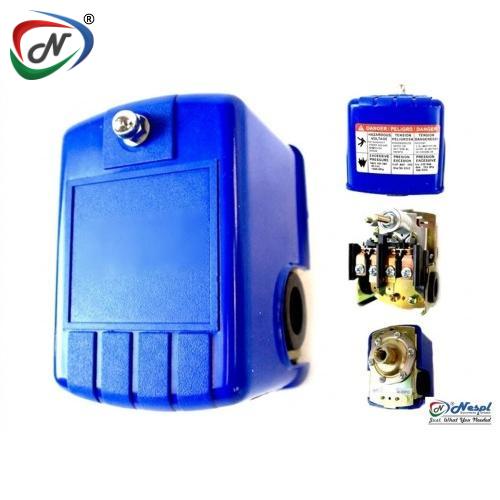

The LF16 well water pump pressure switch, adjustable between 40-60PSI, known for its dependable control in automatic water systems. This switch is universally compatible for use as original equipment on water well pumps or pumping systems. It is suitable for all types of pumps, including jet, submersible, and reciprocating. The device features a 2-pole configuration, a plastic enclosure, and is diaphragm actuated. Each unit is individually boxed and comes in a blue/black BPA-free plastic enclosure.

This pressure switch activates the pump when the water system pressure falls to 40 psi (factory preset) and deactivates it at 60 psi (factory preset). It is designed for use with submersible well or jet pumps. The water pump pressure switch can be wired for either 115-Volt or 230-Volt systems. It must be used in conjunction with a well pressure tank, and the air pressure in the tank, when devoid of water, should be set to 38 psi; otherwise, the switch may not function correctly.

•      The switch turns the pump on at 40 psi and off at 60 psi.
•       The cap can be removed for straightforward adjustments.
•       It can be wired for either 115-Volt or 230-Volt applications.
•       This switch is intended for use with submersible well or jet pumps.
•       Motor wires should be connected to the two middle posts (wire color is not significant).
•       Breaker box wires should be connected to the two outer posts (wire color is not significant).
•       The two-spring design permits adjustments to the cut-in and cut-out pressure settings.
•       Only users with a solid understanding of well systems should adjust the springs.

Main Specifications:
