9.0.88.03g Level Probe TL30 1000mm Eyelet Terminal

#NSSP002948

Product Description

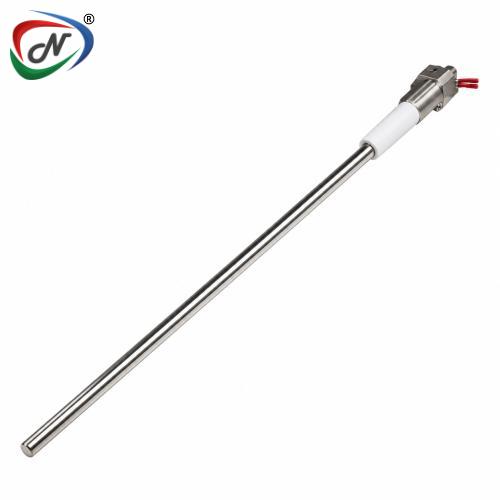

9.0.88.03g Level Probe TL30 1000mm Eyelet Terminal (975mm only electrode)

The Nespl TL30 is a single-pole level probe for conductive liquids in pressurised tanks and boilers. This 1000 mm version features a 975 mm electrode and an eyelet electrical connection.

Its stainless-steel electrode, stainless steel mounting fitting and food-use PTFE insulation provide a durable construction for liquid-contact applications.

Main Specifications:

Parameter	Specification
Brand	Nespl
Part number	9.0.88.03G
Model / series	TL30
Product type	Single-pole conductive liquid level probe
Overall length*	1000 mm
Electrode length only*	975 mm
Electrical connection	Eyelet terminal
Mounting thread	G 3/8 A
Spanner size	22 mm
Electrode diameter	7 mm
Electrode material	Stainless steel AISI 316 / EN 1.4401
Mounting fitting material	Stainless steel AISI 303 / EN 1.4305
Insulating body	Food-use PTFE / Teflon
Maximum pressure	15 bar
Maximum temperature	150°C

Lengths are supplied specifications for this variant.

Applications
Conductive-liquid level sensing in boilers and pressurised tanks fitted with a compatible level controller.

Compatibility
Before ordering, match the equipment’s required part number, insertion length, mounting thread and terminal connection. Confirm controller compatibility with the equipment manufacturer.
