1074 – 1/4" Male Flare × 1/4" Male NPT Check Valve

#NSSP008841

Product Description

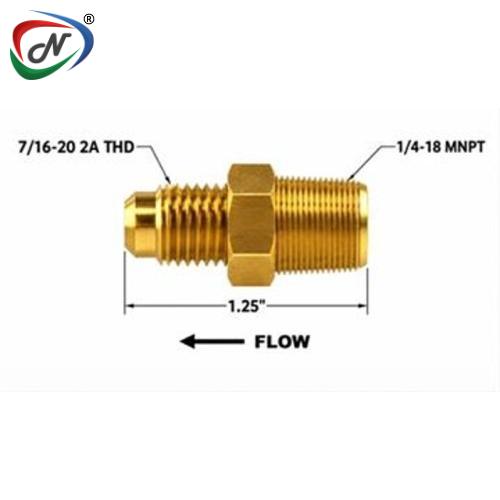

1074 – 1/4" Male Flare × 1/4" Male NPT Check Valve

The 1074 Check Valve connects a 1/4" female flare fitting to a 1/4" female NPT port, combining threaded connection and one-way flow control in a compact component. Fittings, Inc. lists part 1074 with this male flare-to-male NPT configuration.

The valve operates automatically in response to pressure differences, allowing flow in its designated direction and helping prevent reverse flow. It can be considered for compatible beverage dispensing and fluid-handling assemblies where this connection arrangement is required.

Main Features:

One-way flow control: Helps prevent backflow through the connected line.

1/4" male flare connection: Connects to a matching female flare fitting.

1/4" male NPT connection: Fits a matching female NPT equipment port.

Automatic operation: Requires no external actuator or electrical connection.

Compact design: Combines an adapter and check valve in one component.

Main Specifications:

Parameter	Details
Part number	1074
Product type	Check valve / Non-return valve
Body material	Brass
Connection 1	1/4" Male Flare
Flare thread size	7/16"-20
Connection 2	1/4" Male NPT
Configuration	Male × Male
Overall length	Approximately 1.25" / 31.8 mm
Operation	Automatic, pressure operated
