3/8" Male NPT × 3/8" Hose Barb Elbow with 1/8" Female NPT Port

#NSSP008844

Product Description

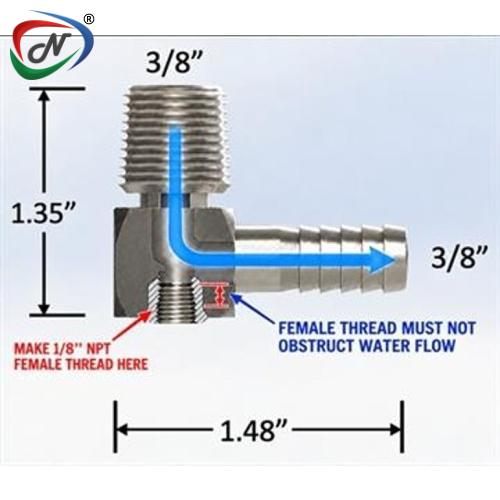

3/8" Male NPT × 3/8" Hose Barb Elbow with 1/8" Female NPT Port

The 3/8" Male NPT × 3/8" Hose Barb Elbow with 1/8" Female NPT Port connects a threaded equipment port to flexible hose while providing an additional threaded connection.

The 3/8" male NPT end connects to a matching female NPT port, and the 3/8" hose barb accepts flexible hose with a nominal 3/8" internal diameter. The additional 1/8" female NPT port accommodates a compatible threaded accessory or branch connection, depending on the equipment design.

Main Features:

Three connection points: Combines male NPT, hose barb and female NPT connections.

Elbow configuration: Supports convenient hose routing in confined spaces.

3/8" hose barb: Fits compatible flexible hose with a nominal 3/8" ID.

Additional 1/8" female NPT port: Provides an accessory or branch connection.

Compact arrangement: Integrates hose routing and an additional port into one fitting.

Main Specifications:

Parameter	Details
Product type	Hose barb elbow with additional threaded port
Main threaded connection	3/8" Male NPT
Hose connection	3/8" hose barb
Additional connection	1/8" Female NPT
Compatible hose size	Nominal 3/8" ID, approximately 9.5 mm
Thread standard	NPT — National Pipe Taper
