1092 – 1/4" Hose Barb × 1/4" Male NPT Check Valve

#NSSP008842

Product Description

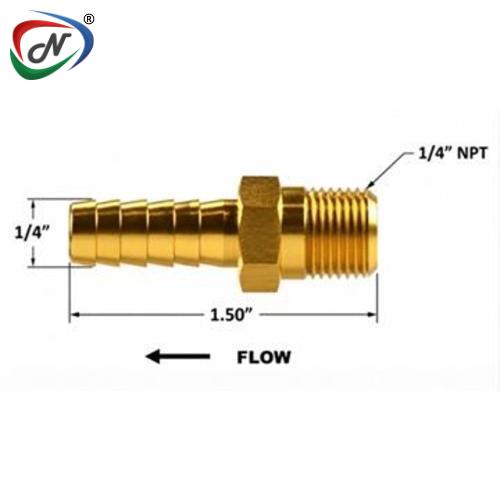

1092 – 1/4" Hose Barb × 1/4" Male NPT Check Valve

The 1092 Check Valve combines a 1/4" hose barb connection with a 1/4" male NPT thread, allowing connection between flexible hose and a matching threaded equipment port. The part number and connection configuration match the Fittings, Inc. product listing.

Designed for one-way flow control, this non-return valve helps prevent reverse flow through the connected line. It provides a compact connection option for compatible beverage dispensing and fluid-handling equipment.

Key Features:

Integrated check valve: Provides automatic one-way flow control.

1/4" hose barb: Connects to compatible flexible hose with a nominal 1/4" internal diameter.

1/4" male NPT connection: Fits a matching female NPT equipment port.

Compact configuration: Combines hose-to-thread connection and backflow control in one component.

Main Specifications:

The matching 1092 catalogue entry lists a brass body, 1.50" overall length and 1.0 PSI value.

Parameter	Details
Part number	1092
Product type	Check valve / Non-return valve
Body material	Brass
Hose connection	1/4" hose barb
Threaded connection	1/4" Male NPT
Compatible hose size	Nominal 1/4" ID — approximately 6.35 mm
Overall length	1.50" — approximately 38.1 mm
Operation	Automatic, pressure operated
Flow direction	Follow the valve’s marked direction
Catalogue PSI value	1.0 PSI — confirm its definition with the supplier
