SYRUP SEPARATOR

#NSSP001387

Product Description

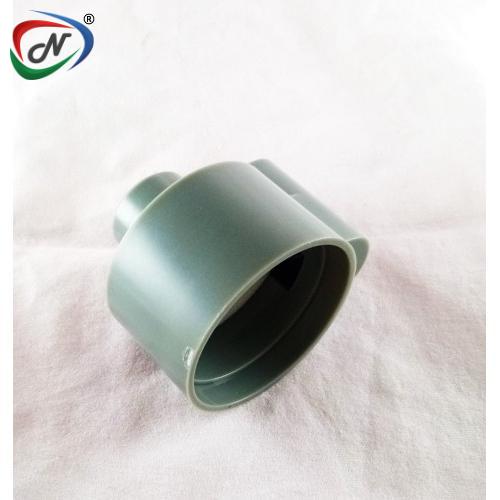

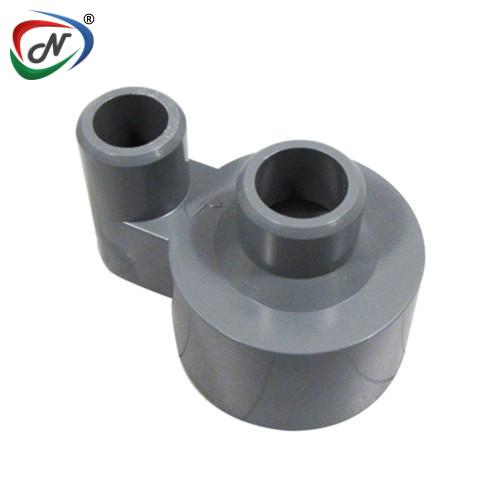

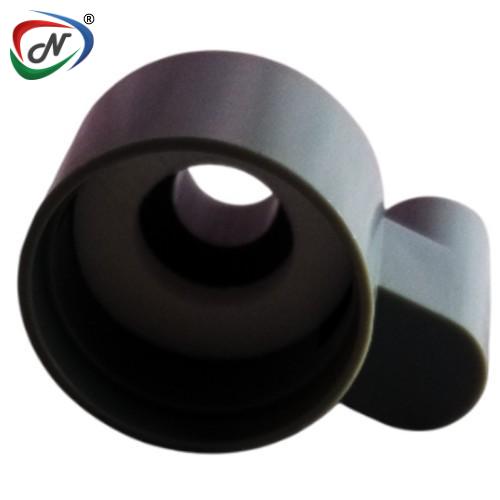

SYRUP SEPARATOR WITH PLUG PH10-83

*Used For Separation of Syrup & Soda from Bargun of any drink

  This nozzle allows you to keep the syrup and soda water separated. Select Wunder Bar soda guns are compatible with it.

1.      Remove the nozzle.

2.      Put the syrup separator onto the diffuser.

3.      Take out a brix cup. Syrup should be put into the small opening, and water should be put into the larger opening.

4.      Remove the flow-regulator manifold cover.

5.      Lossen the nut on the relevant flow-regulator.

6.      In order to increase flow, turn the screw counterclockwise, in order to decrease flow, turn the screw clockwise.

7.      Using the brix cup, measure the brix ratio. You will need to repeat steps 6 & 7 until the brix ratio is correctly set.

8.      Tighten the flow-regulator screw and reattach the flow-regulated manifold cover.

MAIN SPECIFICATION:

  •         Manufacturer: WunderBar
  •         OEM Part Number: PH10-83
  •         Part Number: 1031503





Read More

Beer Industry

Soft Drink Industry

Additional Information

NESPL Code NSSP001387
Manufacturer Code PH10-83
HSN Code 84242000
Manufacturer Wunder Bar
Model PH10-83
Weight 0.012 Kg
Type Parts / Accessories
