PEMSTC2216 JG Speedfit Straight Tap Connector 22mm x 3/4"

#NSSP007775

Product Description

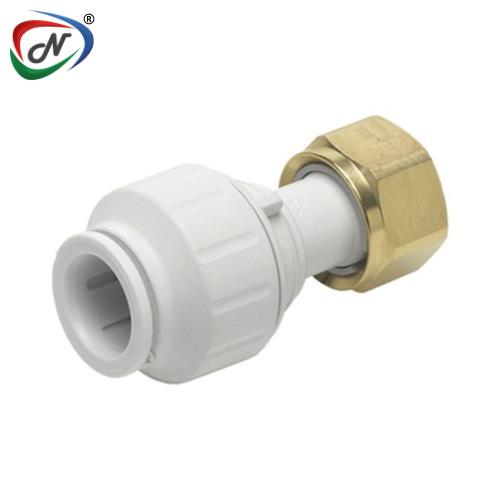

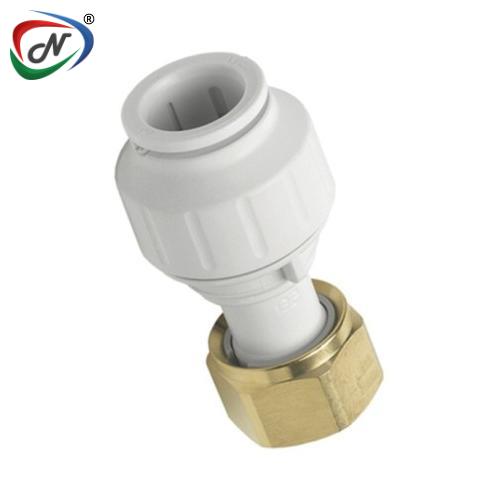

PEMSTC2216 JG Speedfit Straight Tap Connector 22mm x 3/4"

Easily connects to a tap or siphon connection (washer included).

The JG Speedfit straight tap connector is a push-fit fitting designed for connecting plastic or copper pipes to fixtures or appliances that have a MBSP connection point. This tap connector is supplied with a brass swivel nut and a sealing washer. To install, simply push the fitting fully onto the pipe and twist the plastic nut clockwise to secure it in place. To disconnect, unlock the nut by hand, push the collet towards the body of the push-fit fitting, and pull the pipe to release it.

Main Features:

Immediate push-fit connection.
Install and remove in mere seconds without the need for tools.
Safe installation without flames, eliminating the need for hot works, adhesives, or flux.
Grip & Seal™ collet featuring stainless steel teeth and a primary O-Ring seal.
Twist & Lock® cap ensures the fitting is secured and provides additional compression.
Non-toxic, resistant to corrosion, and prevents scale accumulation.
Compatible with Speedfit PEX and polybutylene plastic pipes (inserts necessary) as well as copper pipes.
Appropriate for both hot and cold-water systems and central heating applications.

Main Specifications:

SKU	Description	Size mm	BSP "	Quantity per bag	Quantity per box	Accreditations
PEMSTC1014	JG Speedfit Straight Tap Connector 10mm × 1/2"	10	1/2	10	150	BSI WRAS
PEMSTC1514	JG Speedfit Straight Tap Connector 15mm × 1/2"	15	1/2	5	50	BSI WRAS
PEMSTC1516	JG Speedfit Straight Tap Connector 15mm × 3/4"	15	3/4	5	50	BSI WRAS
PEMSTC2216	JG Speedfit Straight Tap Connector 22mm × 3/4"	22	3/4	5	40	BSI WRAS
