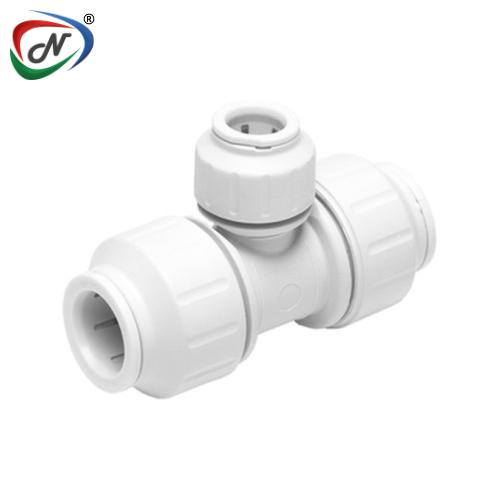

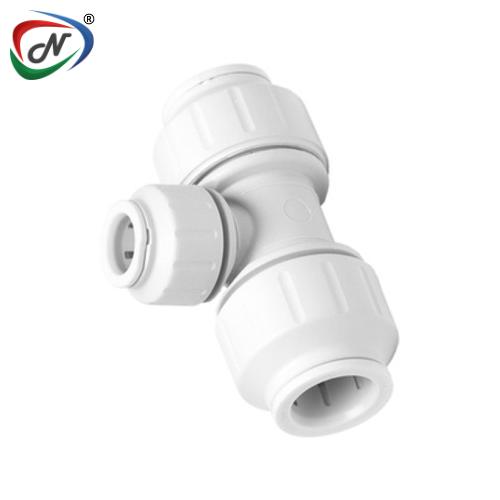

PEM3028AW JG Speedfit Reducing Tee 28 × 28 × 22mm

#NSSP007810

Product Description

PEM3028AW JG Speedfit Reducing Tee 28 × 28 × 22mm

Rapidly and securely joins three pipes of the same diameter

JG Speedfit equal tee push-fit fitting facilitates the connection of three equally sized plastic or copper pipes. To install, simply push the fitting completely onto the pipe and turn the plastic nut clockwise to secure it. To disassemble the connection, manually unlock the nut and push the collet towards the body of the fitting while pulling the pipe to detach it.

Main Features:

Immediate push-fit connection

Install and remove in mere seconds without the need for tools

Safe installation without flames, eliminating the need for hot works, adhesives, or flux

Grip & Seal™ collet featuring stainless steel teeth and a primary O-Ring seal

Twist & Lock® cap ensures the fitting is secured and provides additional compression

Non-toxic, resistant to corrosion, and prevents scale accumulation.

Compatible with Speedfit PEX and polybutylene plastic pipes (inserts necessary) as well as copper pipes.

Appropriate for both hot and cold water systems and central heating applications.

Main Specifications:

SKU	Description	Size mm	Size mm	Size mm	Quantity per bag	Quantity per box	Accreditations
PEM3028AW	JG Speedfit Reducing Tee 28 × 28 × 22mm	28	28	22	2	10	BSI WRAS
PEM3028BW	JG Speedfit Reducing Tee 28 × 22 × 22mm	28	22	22	2	10	BSI WRAS
PEM3028DW	JG Speedfit Reducing Tee 28 × 22 × 28mm	28	22	28	2	10	BSI WRAS
