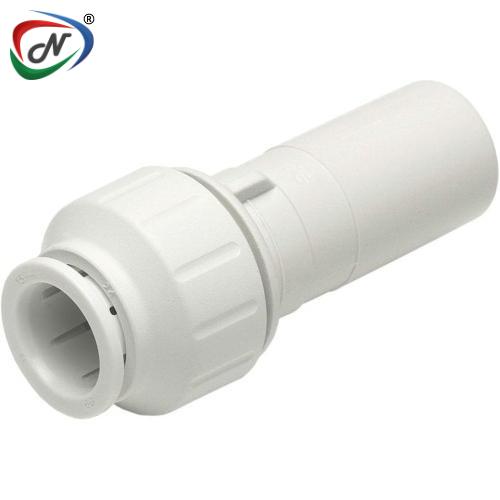

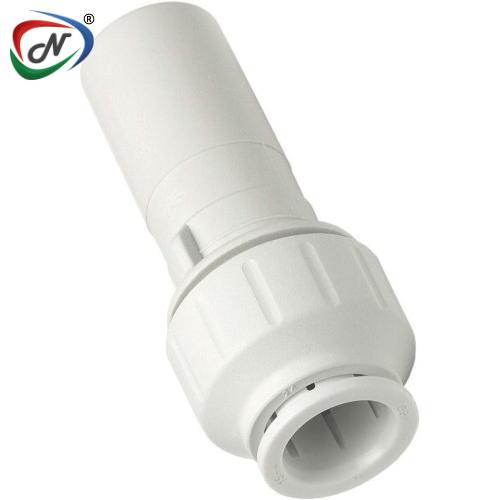

PEM061510W JG Speedfit Reducer 15 × 10mm

#NSSP007750

Product Description

PEM061510W JG Speedfit Reducer 15 × 10mm

Rapidly and securely links two Speedfit fittings of different sizes to minimize a line size.

JG Speedfit reducer push-fit fitting facilitates the connection of plastic or copper pipes. The tapered spigot end enables the joining of two Speedfit push-fit fittings, forming a swivel-type connection while decreasing the line size. To install, simply push the push-fit fitting completely onto the pipe and rotate the plastic nut clockwise to secure it in position. To detach the connection, manually unlock the nut and push the collet towards the body of the push-fit fitting, then pull the pipe to release.

Main Features:

Immediate push-fit connection.
Install and remove in mere seconds without the need for tools.
Safe installation without flames, eliminating the need for hot works, adhesives, or flux.
Grip & Seal™ collet featuring stainless steel teeth and a primary O-Ring seal.
Twist & Lock® cap ensures the fitting is secured and provides additional compression.
Non-toxic, resistant to corrosion, and prevents scale accumulation.

Main Specifications:

SKU	Description	Size mm	Size mm	Quantity per bag	Quantity per box	Accreditations
PEM061510W	JG Speedfit Reducer 15 × 10mm	15	10	10	150 small & 1000 (large)	BSI WRAS
PEM062215W	JG Speedfit Reducer 22 × 15mm	22	15	10	70	BSI WRAS
PEM062815W	JG Speedfit Reducer 28 × 15mm	28	15	5	40	BSI WRAS
PEM062822W	JG Speedfit Reducer 28 × 22mm	28	22	5	30	BSI WRAS
