PEM572222W JG Speedfit 135 Degree Stem Elbow 22mm

#NSSP007749

Product Description

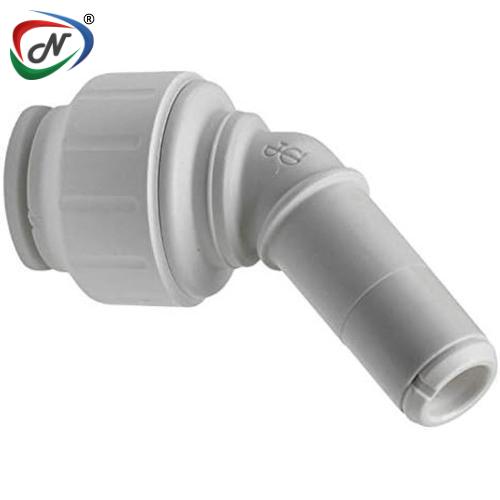

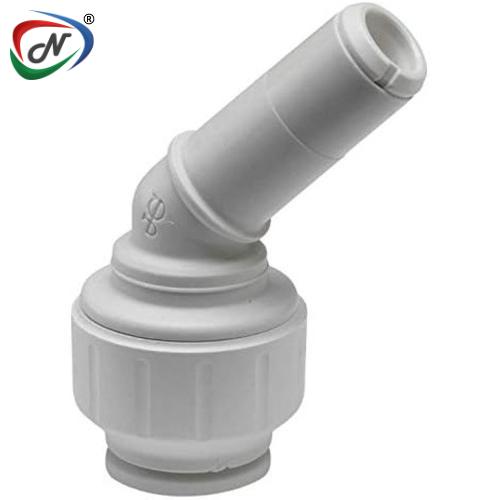

PEM572222W JG Speedfit 135 Degree Stem Elbow 22mm

Easily connects two Speedfit fittings of the same size to form a cross-over type connection.

The JG Speedfit 135-degree stem elbow push-fit fitting is designed for connecting two equally sized Speedfit push-fit fittings, facilitating a cross-over type connection. This stem elbow enables a 135° male to female connection, making it an excellent coupler for appliances like cold water storage tanks. To install, simply push the push-fit fitting completely onto the pipe and twist the plastic nut clockwise to secure it in place. To disassemble the connection, unlock the nut by hand, push the collet towards the body of the push-fit fitting, and pull the pipe to detach it.

Main Features:

Immediate push-fit connection.
Install and remove in mere seconds without the need for tools.
Safe installation without flames, eliminating the need for hot works, adhesives, or flux.
Grip & Seal™ collet featuring stainless steel teeth and a primary O-Ring seal.
Twist & Lock® cap ensures the fitting is secured and provides additional compression.
Non-toxic, resistant to corrosion, and prevents scale accumulation.
Compatible with Speedfit PEX and polybutylene plastic pipes (inserts necessary) as well as copper pipes.
Appropriate for both hot and cold water systems and central heating applications.

Main Specifications:

SKU	Description	Size mm	Stem Size mm	Quantity per bag	Quantity per box	Accreditations
PEM571515W	JG Speedfit 135 Degree Stem Elbow 15mm	15	15	10	80	BSI WRAS
PEM572222W	JG Speedfit 135 Degree Stem Elbow 22mm	22	22	5	30	BSI WRAS
