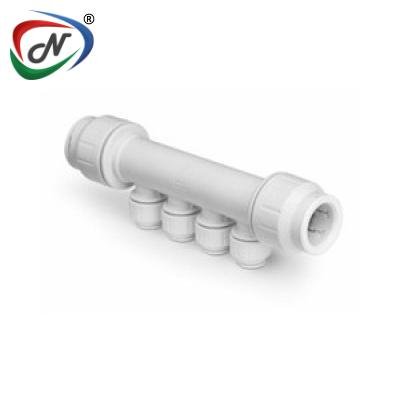

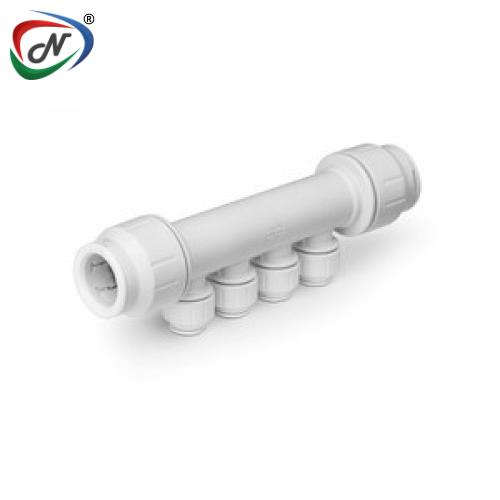

PEM522210WP JG Speedfit 4 Port Manifold 22 × 10mm

JG Speedfit plastic plumbing push-fit manifolds are a durable solution that enables service pipework to be quickly and easily centralised at a single point.
Made from polybutylene, the manifolds have a straight-through design and push-fit Twist & Lock® connections on all inlets and outlets, for fast and simple installation. Alternatively, there is an option with a stem connection on the main inlet that allows for additional plastic manifolds to be securely connected.
Simply push the push-fit fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. To demount the connection, unlock the nut by hand and push the collet towards the body of the push-fit fitting and pull the pipe to release.
JG Speedfit is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools. Designed, manufactured and assembled in the UK.

Features and benefits

• Durable polybutylene manifolds
• Instant push-fit connections with an additional option that includes a stem type connection for installation flexibility
• Install and demount in seconds without tools
• Safe flame-free installation, with no hot works, glue or flux
• Up to 40% cost-saving compared to alternative methods that includes a series of pipes, elbows and tees, which makes installation longer and more complex
• Grip & Seal collet with stainless steel teeth and main O-Ring seal
• Twist & Lock mechanism secures fitting and adds compression
• Non-toxic, resists corrosion and no scale build-up
• Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
• Suitable for hot and cold water and central heating systems

Main Specifications:
