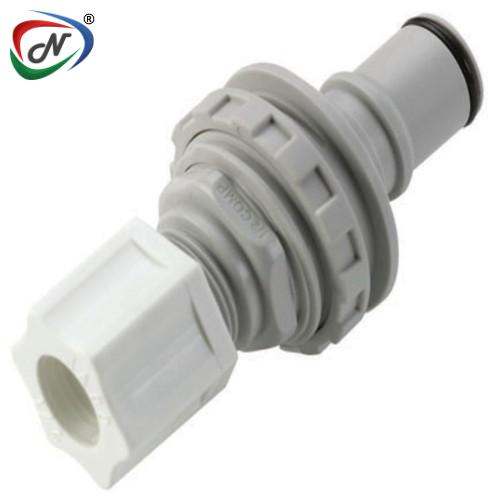

NS6D40008 1/2 JACO Valved Panel Mount Insert
#NCPC158
Product Description
NS6D40008
1/2 JACO Valved Panel Mount Insert
Main Features:
- Non-Spill
Design
- Color
Coding
- Glass-filled
Polypropylene
- Colder
Thumb Latch
Main Benefits:
- Disconnect
Under Pressure with No Spills.
- Instant
Visual Differentiation of Media Lines.
- Durable
& Compatible with Many Chemicals.
- One-Hand
Connection and Disconnection.
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray
with dark gray overmold
- Mounting
Option: Thread
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Insert
- Spillage: ~0.03
cc per disconnect, 0.42 per connect
- Weight: .059
Ounce
- Bag
Qty: 10
|
TERMINATION |
PANEL MOUNT
COMPRESSION |
|
TUBING/THREAD SIZE |
1/2" OD |
|
METRIC EQ. |
12.7mm OD |
|
SHUTOFF |
NS6D40008 |
|
A(Height/Diameter) |
1.50 (38.1) |
|
B (Total Length) |
3.32(84.3) |
*All measurements are in inches (millimetres) unless
otherwise noted.
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC158 |
| Manufacturer Code | NS6D40008 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
