NS4D4200406 1/4 Hose Barb Valved Panel Mount Coupling Insert

#NSSP003123

Product Description

NS4D4200406

1/4 Hose Barb Valved Panel Mount Coupling Insert

Main Features:

  • Material: ABS
  • Material Finish: Molded White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: White with teal overmold
  • Mounting Option: Panel Mount
  • Sterilization: Gamma
  • Temperature Range: 32°F - 160°F (0°C - 71°C)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Spillage: <0.10 cc per disconnect, 0.10cc per connect
  • Bag Qty: 25

COUPLING BODIES - Polypropylene/ABS

TERMINATION

IN-LINE HOSE BARB

TUBING/THREAD SIZE

1/4" ID

METRIC EQ.

6.4 MM ID

ABS SHUTOFF

NS4D1700406

POLYPROPYLENE SHUTOFF

NS4D17004

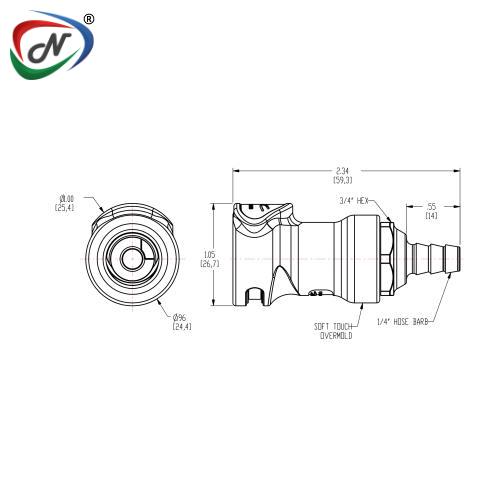

A(Height/Diameter)

1.05 (26.7)

B( Total Length)

2.34 (59.4)























*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

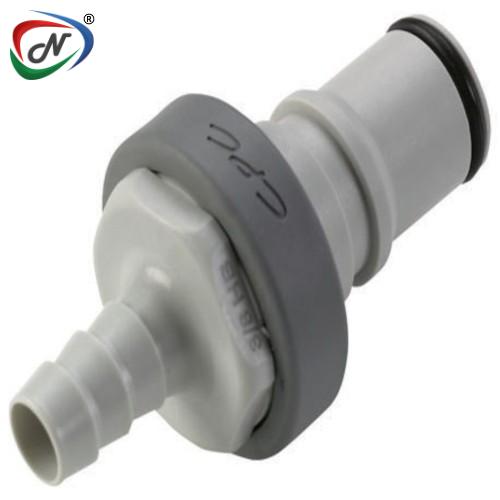

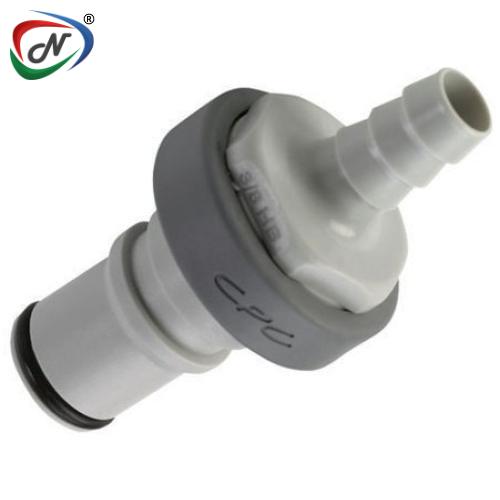

Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP003123
Manufacturer Code NS4D4200406
HSN Code 39171010
Manufacturer CPC Quick Connect & Disconnect Solutions
