NS4D2200406 1/4 Hose Barb Valved In-Line Coupling Insert

#NCPC199

Product Description

NS4D2200406

1/4 Hose Barb Valved In-Line Coupling Insert

Main Features:

  • Non-Spill Design
  • Colour Coding
  • Glass -Fitted Polypropylene

Main Benefits:

  • Disconnect under pressure with no spills
  • Instant visual differentiation of media lines
  • Durable & Compatible with many chemicals.

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded Grey
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Gray with dark gray overmold
  • Mounting Option: Free Floating
  • Temperature Range: 32°F - 160°F (0°C - 71°C)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Spillage: <0.10 cc per disconnect, 0.10cc per connect
  • Bag Qty: 25

TERMINATION

IN-LINE HOSE BARB

TUBING/THREAD SIZE

1/4" ID

METRIC EQ.

6.4mm ID

ABS SHUTOFF

NS4D2200406

POLYPROPYLENE SHUTOFF

NS4D22004

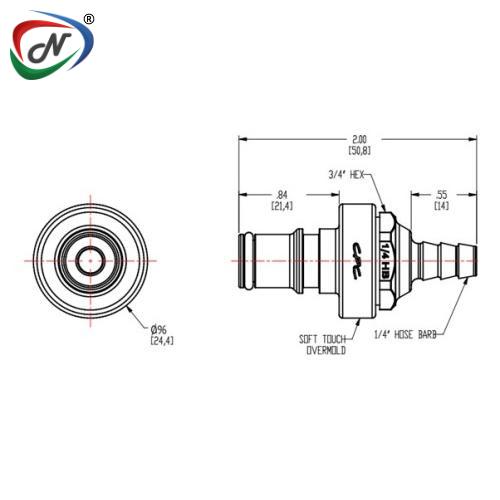

A(Height/Diameter)

0.96 (24.4)

B (Total Length)

1.98 (50.3)



*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

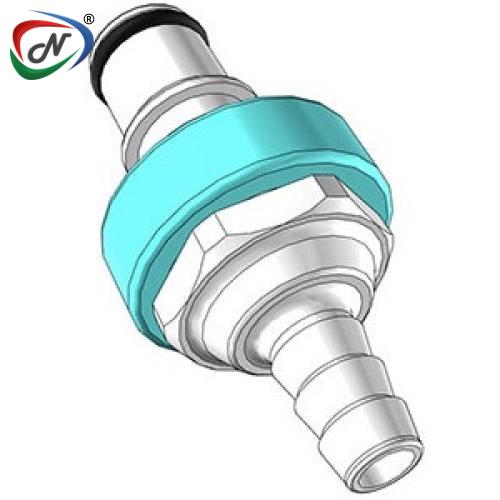

Note: Image is just for ref.


Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC199
Manufacturer Code NS4D2200406
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
