NS4D1700606 3/8 Hose Barb Valved In-Line Coupling Body

#NCPC192

Product Description

NS4D1700606

3/8 Hose Barb Valved In-Line Coupling Body

Main Features:

  • Non-Spill Design
  • Colour Coding
  • Glass -Fitted Polypropylene

Main Benefits:

  • Disconnect under pressure with no spills
  • Instant visual differentiation of media lines
  • Durable & Compatible with many chemicals.

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: White with teal overmold
  • Mounting Option: Free Floating
  • Sterilization: Gamma
  • Temperature Range: 32°F - 160°F (0°C - 71°C)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Body
  • Spillage: <0.10 cc per disconnect, 0.10cc per connect
  • Bag Qty: 25

TERMINATION

IN-LINE HOSE BARB

TUBING/THREAD SIZE

3/8" ID

METRIC EQ.

9.5mm ID

ABS SHUTOFF

NS4D1700606

POLYPROPYLENE SHUTOFF

NS4D17006

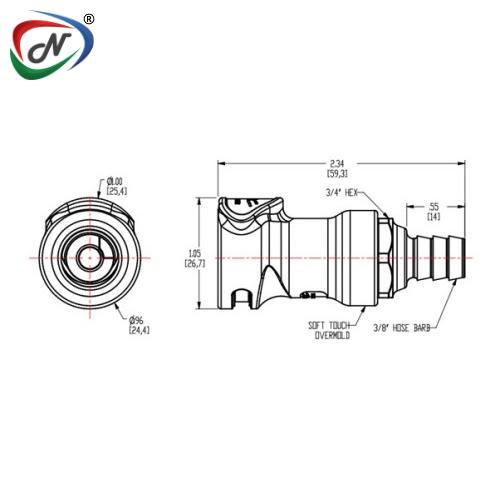

A(Height/Diameter)

1.05 (26.7)

B (Total Length)

2.34 (59.4)



*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

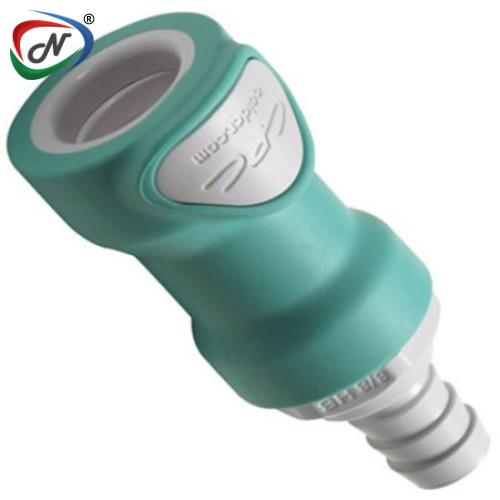

 Note: Image is just for ref.
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC192
Manufacturer Code NS4D1700606
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
