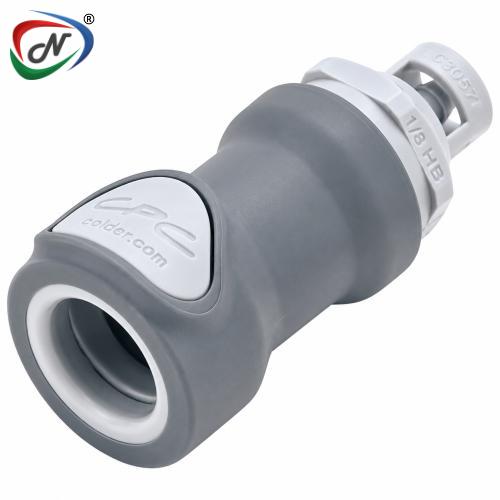

NS4D17002 1/8 Hose Barb Valved In-Line Coupling Body
#NCPC187
Product Description
NS4D17002
1/8 Hose Barb Valved In-Line Coupling Body
Main Features:
- Non-Spill
Design
- Colour
Coding
- Glass
-Fitted Polypropylene
Main Benefits:
- Disconnect
under pressure with no spills
- Instant
visual differentiation of media lines
- Durable
& Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Grey
with dark grey overmold
- Mounting
Option: Free Floating
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Body
- Spillage: <0.10
cc per disconnect, 0.10cc per connect
- Weight: .0275
Ounce
- Bag
Qty: 25
|
TERMINATION |
IN-LINE HOSE BARB |
|
TUBING/THREAD SIZE |
1/8" ID* |
|
METRIC EQ. |
3.2mm ID* |
|
ABS SHUTOFF |
NS4D1700206 |
|
POLYPROPYLENE SHUTOFF |
NS4D17002 |
|
A(Height/Diameter) |
1.05 (26.7) |
|
B (Total Length) |
2.09 (53.1) |
All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
*1/8" ID (3.2mm) hose barb connection has a support shroud allowing a maximum tube OD of 1/4" (6.4mm).
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC187 |
| Manufacturer Code | NS4D17002 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
