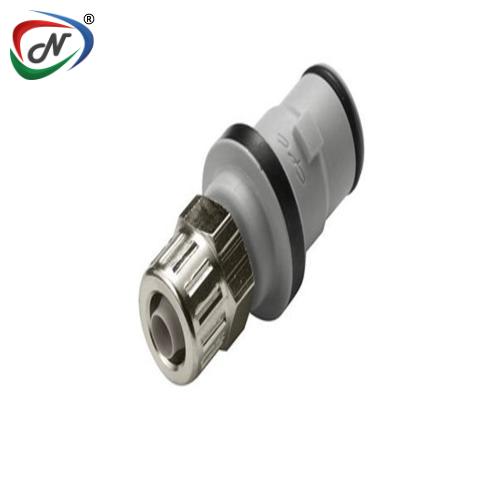

NS2D200412 1/4 PTF Valved In-Line Coupling Insert

#NCPC144

Product Description

NS2D200412

1/4 PTF Valved In-Line Coupling Insert

Main Features:

  • Efficient, Non-Spill Design
  • Multiple Seal Materials
  • Twist-to-connect locking
  • Compact design
  • Ultra-low air inclusion

Main Benefits:

  • Disconnect under pressure with no spills
  • Broad chemical compatibility for diverse applications.
  • Easy, non-spill connections in tight spaces
  • High flow in a small connector
  • Minimizes contaminants, reduces the need to purge lines

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded Grey
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Color: Gray with dark gray overmold
  • Mounting Option: Thread
  • Temperature Range: 32°F - 120°F (0°C - 49°C)
  • Seal Options: EPDM, FFKM
  • Valve Spring:  316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Weight: .0056 Ounce
  • Bag Qty: 25

TERMINATION

IN-LINE

FERRULESS POLYTUBE

FITTING, PTF

TUBING/THREAD SIZE

1/4" OD, .17 ID

METRIC EQ

?6.4mm OD, 4.3mm ID

SHUTOFF

NS2D200412

A(Height/Diameter)

0.64 (16.3)

B (Total Length)

1.39(35.3)



*All measurements are in inches (millimetres) unless otherwise noted.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC144
Manufacturer Code NS2D200412
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
