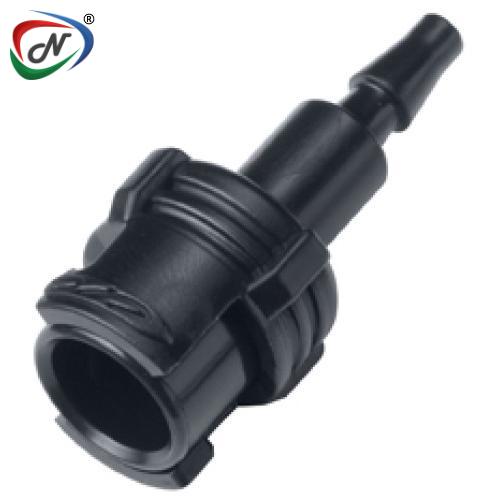

SMFD01MBLK 1/16 HOSE BARB VALVED IN-LINE ACETAL MOLDED BLACK COUPLING BODY
#NSSP004987
Product Description
SMFD01MBLK 1/16 HOSE BARB VALVED IN-LINE ACETAL MOLDED BLACK COUPLING BODY
The 1/4" flow DPC Series couplings feature a dual port connection in a contoured design that delivers ease-of-use and excellent flow in a compact size. Made from acetal thermoplastic, the DPC Series includes valved and non-valved couplings with a single plastic thumb latch. One-hand operation makes the DPC Series the choice for simple, simultaneous connections and disconnections where two fluid lines are required.
Main Features:
- Single thumb latch
- Insert keyed to body
- Compact, modular design
- Integral terminations
Main Benefits:
- Intuitive one step, two-line connection & disconnection
- Ensures correct directional flow
- Attractive, high-quality appearance and configuration flexibility
- Fewer moving parts, shorter assemblies, faster installations
Main Specifications:
- Material: Acetal
- Material Finish: Dyed Black
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Thread
- Sterilization: EtO, e-beam or gamma
- Temperature Range: 32°F - 120°F (0°C - 48°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Bag Qty: 50
Click to download : COLDER_SMFDM3MBLKMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004987 |
| Manufacturer Code | SMFD01MBLK |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
