PLCD12004 1/4 PTF Valved Panel Mount Coupling Body

#NSSP003544

Product Description

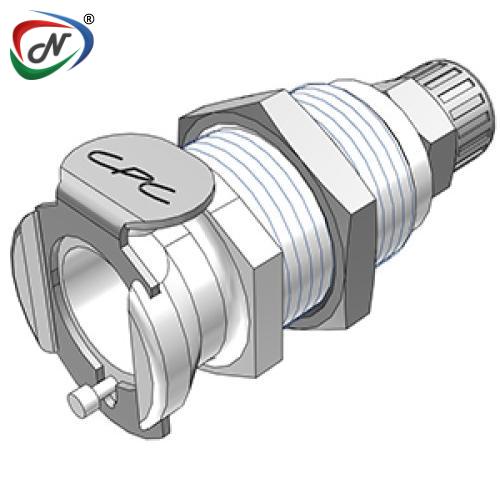

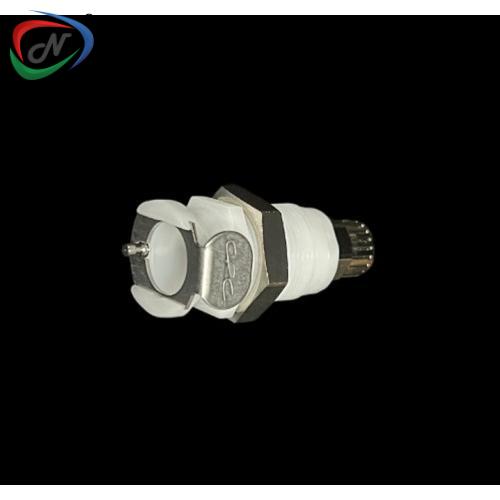

PLCD12004 1/4 PTF Valved Panel Mount Coupling Body

Main Features:

Single thumb latch
Latch always in position to accept insert
Compact, modular design
Independent quick connections

Main Benefits:

Minimizes inadvertent latch activation
Ensures leak-free operation
Fits well in the hand and is easy to wipe down
Requires minimal manual dexterity

Main Specifications:

Material: Acetal
Material Finish: Natural
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: White
Mounting Option: Panel Mount
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Body
Bag Qty: 25

COUPLING BODY - ACETAL

TERMINATION	PANEL MOUNT FERRULELESS POLYTUBE FITTING, PTF†
TUBING/THREAD SIZE	1/4" OD, 0.17" ID
METRIC EQ	6.4mm OD, 4.3mm ID
STRAIGHT THRU	PLC12004
SHUTOFF	PLCD12004
A (Height/Diameter)	0.88 (22.4)
B (Total Length)	1.87 (47.5)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
