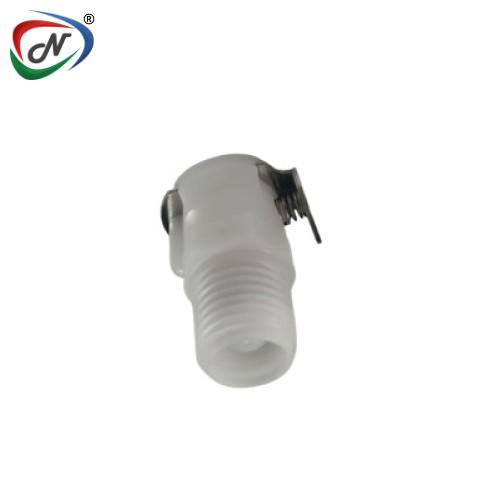

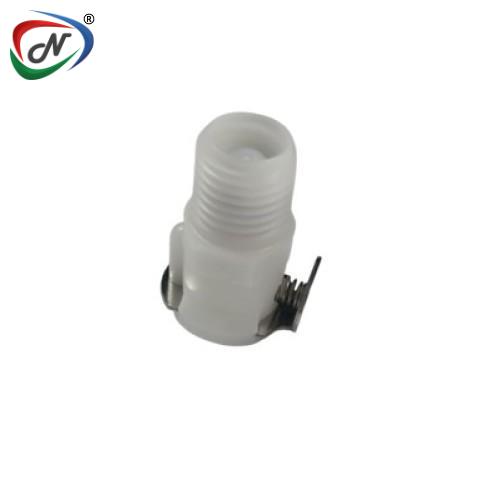

PLCD10004 1/4 NPT Valved Coupling Body
#NSSP003388
Product Description
PLCD10004
1/4 NPT Valved Coupling Body
Main Features:
- Single thumb latch
- Latch always in position to accept insert
- Compact, modular design
- Independent quick connections
Main Benefits:
- Minimizes inadvertent latch activation
- Ensures leak-free operation
- Fits well in the hand and is easy to wipe down
- Requires minimal manual dexterity
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY – Acetal
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/4" NPT |
METRIC EQ | |
STRAIGHT THRU | PLC10004 |
SHUTOFF | PLCD10004 |
A (Height/Diameter) | 0.9 (22.9) |
B (Total Length) | 1.17 (29.7) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

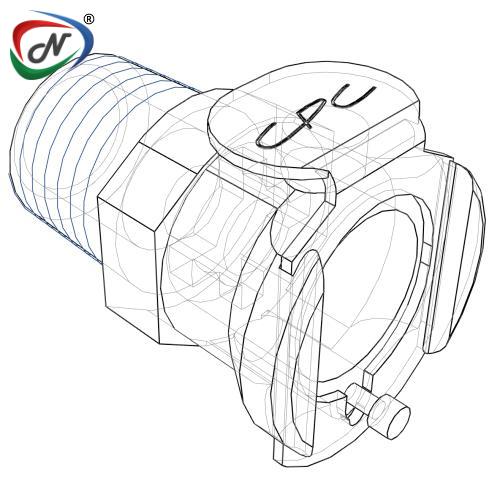

Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003388 |
| Manufacturer Code | PLCD10004 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
