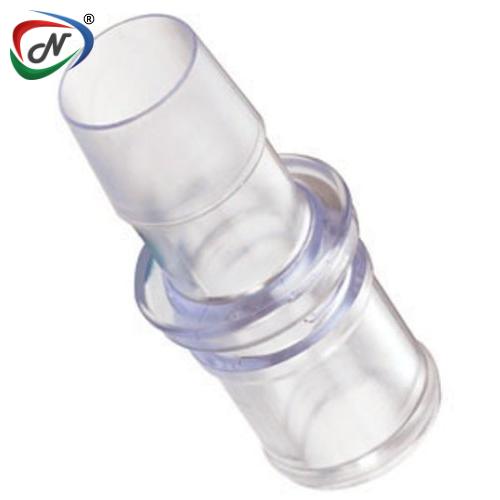

MPX22803M 1/2 Hose Barb Non-Valved Coupling Insert
#NSSP004080
Product Description
- With a wide range of male and female MPC connectors and configurations available, in sizes suitable for 1/2", 3/8", and 3/4" tubing, the MPX series connectors are the ideal choice for quick and reliable connections.
- The MPX Series Connectors provide a convenient solution for
swiftly connecting and disconnecting fluid or media in various processes.
- By simply pushing the two halves together, a connection is
established, and disconnecting is as easy as pressing the thumb latch to
separate them.
- To ensure the lines are protected during transfers, caps and
plugs are available to seal off disconnected halves, and optional locking
sleeves can be used to prevent accidental disconnects.
- Moreover, the coupling halves can be rotated while connected
to minimize tube kinks.
- The
MPX also offers added flexibility when transitioning to a larger tubing size,
thanks to the Back-to-Back adapter that connects to the MPC product.
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: Purple Tint
- Mounting Option: Free Floating
- Sterilization Method:
Gamma, autoclave
- Temperature Range:
-40°F - 250°F (-40°C - 121°C)
- Seal Options: Silicone,
platinum-cured, USP Class VI, ADCF
- Valve Options: Non-Valved
- Body Type: Insert
|
Features |
Benefits |
|
Ergonomic thumb latch |
Easy to operate – even
with gloved hands |
|
USP Class VI materials |
Meet biocompatibility
requirements |
|
Sterilizable by autoclave,
Et0, e-beam, or gamma |
Reusable, yet economical
enough to allow disposability |
|
Parting line-free hose barb |
Eliminates potential leak
path |
|
ADCF-free materials |
Meet BSE/TSE
requirements |
Click to download : CPC-MPX-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004080 |
| Manufacturer Code | MPX22803M |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
