MC4204 1/4 Hose Barb Non-Valved Panel Mount Coupling Insert

MC4204

1/4 Hose Barb Non-Valved Panel Mount Coupling Insert

CPC's MC Series chrome-plated brass couplings are designed to withstand rigorous conditions and are built to endure in the most challenging applications. These couplings are particularly suitable for use in high temperature or high-pressure environments. The MC Series features a convenient one-hand operation, allowing for quick and effortless connections and disconnections. These couplings offer versatility with multiple configurations and terminations, enabling compatibility with both the PMLC acetal and PMC12 polypropylene couplings. Additionally, there are couplings available that meet the requirements of the NSF standard.

MAIN FEATURES:

• Material: Brass
• Material finish: Chrome
• Pressure range: Vacuum to 250 psi, 17.3 bar
• Color: Chrome
• Mounting option: Panel mount
• Temperature range: -40°F - 180°F (-40°C - 82°C)
• Seal Options: BUNA-N
• Valve options: Non-valved
• Body type: Insert
• Bag Qty: 10

  Features		Benefits
  	Brass material		Durable and able to withstand higher pressure and temperature
  	Compatible		MC mates with PMC and PMC12 Series couplings
  	High temperature capability		Versions rated to 400°F (204°C )
  	Colder thumb latch		One-hand connection and disconnection

COUPLING INSERT – Chrome-Plated Brass

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

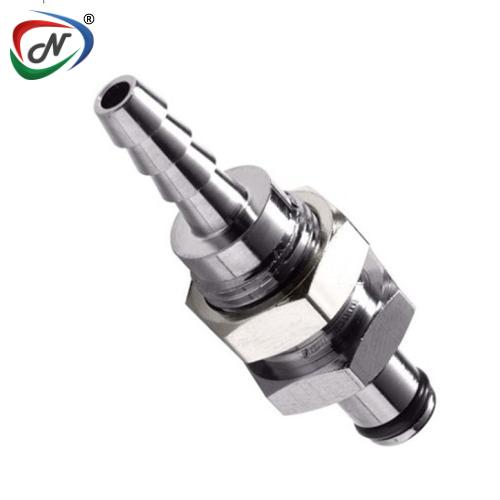

Note: Image is just for ref.
