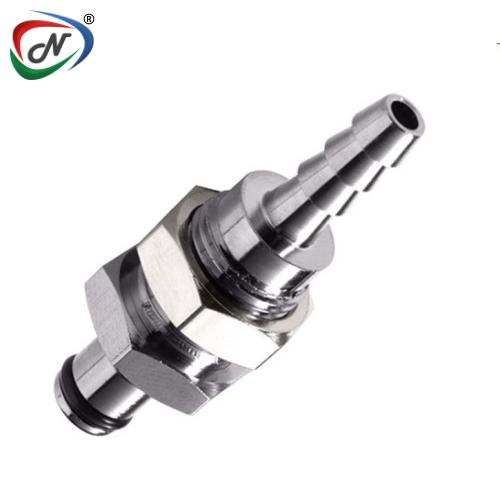

MC4203 3/16 HOSE BARB NON-VALVED PANEL MOUNT COUPLING INSERT (CHROME PLATED BRASS)

#NSSP003837

Product Description

MC4203

3/16 HOSE BARB NON-VALVED PANEL MOUNT COUPLING INSERT (CHROME PLATED BRASS)

CPC's MC Series chrome-plated brass couplings are designed to withstand rigorous conditions and are built to endure in the most challenging applications. These couplings are particularly suitable for use in high temperature or high-pressure environments. The MC Series features a convenient one-hand operation, allowing for quick and effortless connections and disconnections. These couplings offer versatility with multiple configurations and terminations, enabling compatibility with both the PMLC acetal and PMC12 polypropylene couplings. Additionally, there are couplings available that meet the requirements of the NSF standard.

MAIN FEATURES:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 250 psi, 17.3 bar
Color: Chrome
Mounting Option: Panel Mount
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Options: Non-Valved
Body Type: Insert

Bag Qty: 10

Features		Benefits
	Brass material		Durable and able to withstand higher pressure and temperature
	Compatible		MC mates with PMC and PMC12 Series couplings
	High temperature capability		Versions rated to 400°F (204°C )
	Colder thumb latch		One-hand connection and disconnection

COUPLING INSERT – Chrome-Plated Brass

TERMINATION	PANEL MOUNT HOSE BARB
TUBING/THREAD SIZE	3/16" ID
METRIC EQ	4.8mm ID
STRAIGHT THRU	MC4203
SHUTOFF	MCD4203
A (Height/Diameter)	0.72 (18.3)
B (Total Length)	1.87/1.97 (47.5/50.0)
