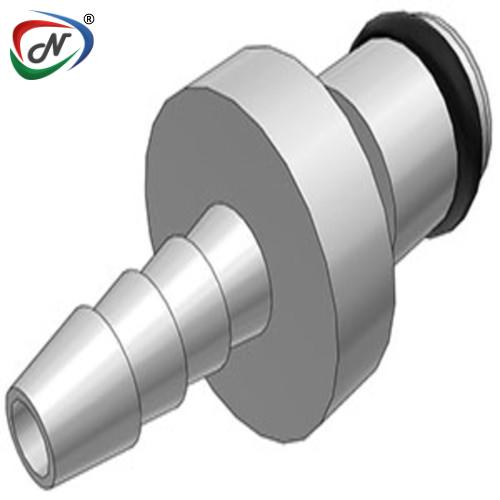

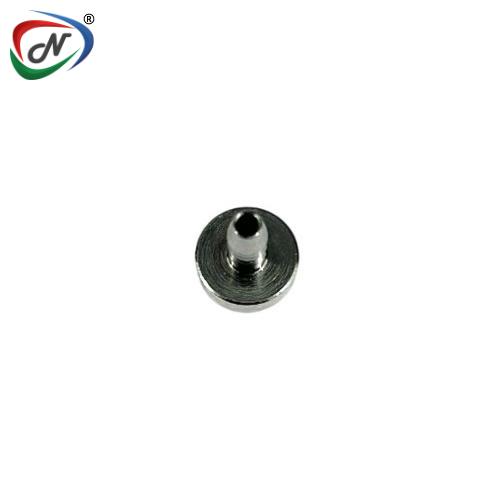

MC2202 1/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert

#NSSP003238

Product Description

MC2202 1/8 Hose Barb Non-Valved In-Line Chrome-plated Brass Coupling Insert

MAIN FEATURES:

Brass Material
Compatible
High Temperature Capability
Colder Thumb Latch

MAIN BENEFITS:

Durable and able to withstand higher pressure and temperature.
MC mates with PMC and PMC12 Series Couplings
Versions rated to 400°F (204°C)
One-hand Connection and Disconnection

Main Specifications:

Material: Brass

Material Finish:Chrome

Pressure Range: Vacuum to 250 psi, 17.3 bar

Color: Chrome

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Options: BUNA-N

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 10

COUPLING INSERTS - Chrome-plated brass

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	1/8" ID
METRIC EQ	3.2mm ID
STRAIGHT THRU	MC2202
SHUTOFF	MCD2202
A(Height/Diameter)	0.58 (14.7)
B( Total Length)	1.05/1.65 (26.7/41.9)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: CPC's Ferruleless PTF (polytube fitting) terminations do not require ferrules to achieve a secure connection and are therefore easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

NOTE: Elbow configurations are available. Contact for more information.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
