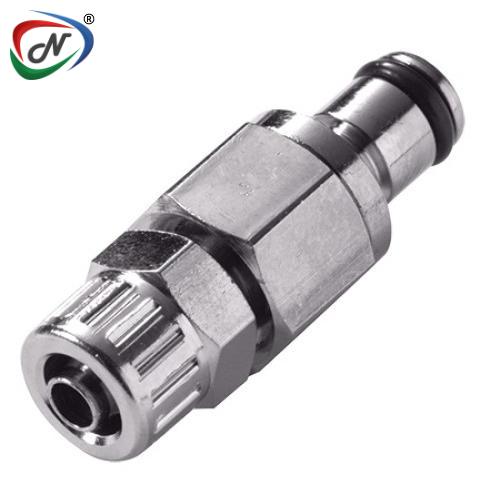

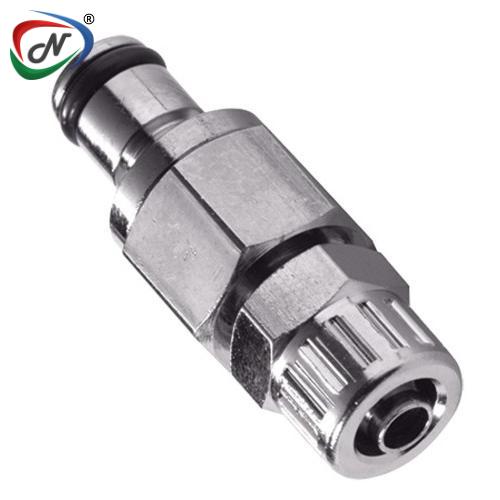

MC2004 -1/4 PTF Non-Valved In-Line Chrome-plated Brass Coupling insert

#NSSP003529

Product Description

MC2004 -1/4 PTF Non-Valved In-Line Chrome-plated  Brass Coupling insert

MAIN FEATURES:

  • Brass Material
  • Compatible
  • High Temperature Capability
  • Colder Thumb Latch

MAIN BENEFITS:

  • Durable and able to withstand higher pressure and temperature.
  • MC mates with PMC and PMC12 Series Couplings
  • Versions rated to 400°F (204°C)
  • One-hand Connection and Disconnection

MAIN SPECIFICATIONS:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 250 psi, 17.3 bar

Color: Chrome

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Options: BUNA-N

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 10

    COUPLING INSERT - Chrome-plated brass

    TERMINATION

    IN-LINE FERRULELESS POLYTUBE FITTING,PTF†

    TUBING/THREAD SIZE

    1/4" OD, 0.17" ID

    METRIC EQ

    6.4mm OD, 4.3mm ID

    STRAIGHT THRU

    MC2004

    SHUTOFF

    MCD2004

    A (Height/Diameter)

    0.58 (14.7)

    B (Total Length)

    1.15/1.55 (29.2/39.4)



















    *All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

    †NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.


    WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

    Note: Image is just for ref.

    Read More

    Medical (Core) & Thermal Industry

    Additional Information

    NESPL Code NSSP003529
    Manufacturer Code MC2004
    HSN Code 74122090
    Manufacturer CPC Quick Connect & Disconnect Solutions
    Weight 0.019kg
    Type Quick Fittings
