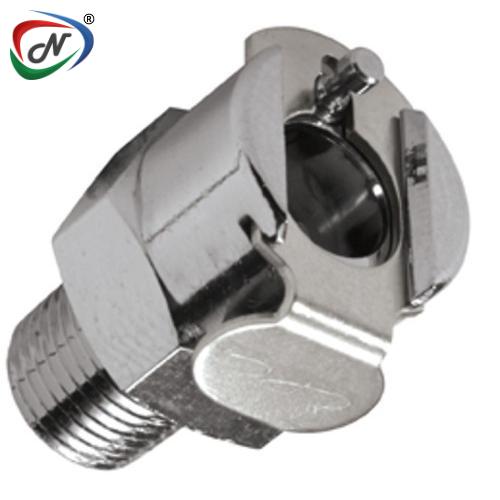

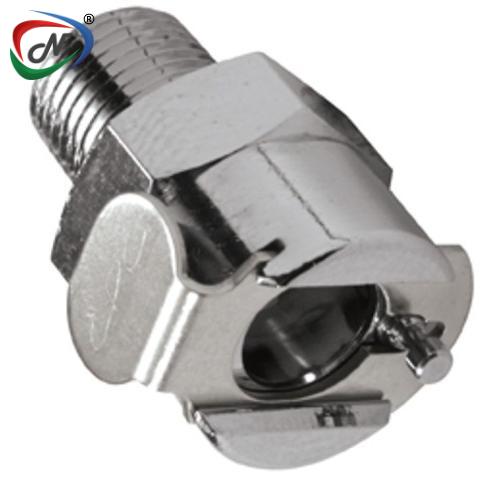

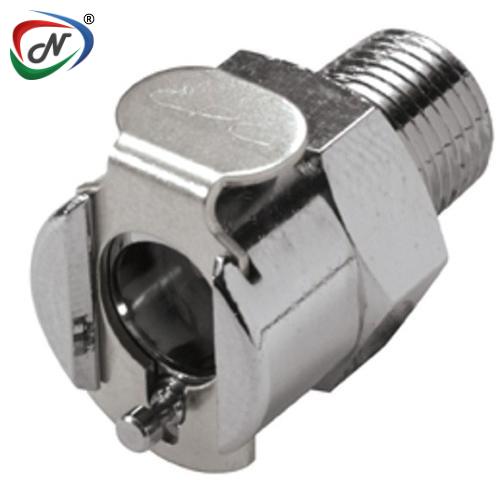

MC1002 -1/8 NPT Non-Valved Chrome-plated Brass Coupling Body
#NSSP003528
Product Description
MC1002 -1/8 NPT Non-Valved Chrome-plated Brass Coupling Body
MAIN FEATURES:
- Brass Material
- Compatible
- High Temperature Capability
- Colder Thumb Latch
MAIN BENEFITS:
- Durable and able to withstand higher pressure and temperature.
- MC mates with PMC and PMC12 Series Couplings
- Versions rated to 400°F (204°C)
- One-hand Connection and Disconnection
MAIN SPECIFICATIONS:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to
250 psi, 17.3 bar
- Color: Chrome
- Mounting
Option: Thread
- Temperature
Range: -40°F -
180°F (-40°C - 82°C)
- Valve
Option: Non-Valved
- Body Type: Body
- Bag Qty: 10
COUPLING BODY - Chrome-plated brass
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/8" NPT |
STRAIGHT THRU | MC1002 |
SHUTOFF | MCD1002 |
A (Height/Diameter) | 0.76 (19.3) |
B (Total Length) | 1 (25.4) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC MC SERIES CATALOGUEMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003528 |
| Manufacturer Code | MC1002 |
| HSN Code | 74198090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
