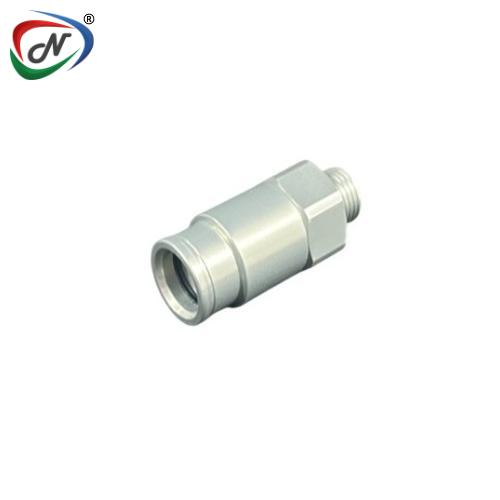

BLQ6D30006 SAE-6 Valved In-Line Body Everis BLQ6
#NSSP003217
Product Description
BLQ6D30006
SAE-6 Valved In-Line Body Everis BLQ6
Main Features:
- Non-spill design
- Reliable seal when connected
- Non-friction valve
- High axial engagement tolerance
- Single-piece options for body & insert
- Rugged anodized aluminium
- Optional panel mount kit
Main Benefits:
- Extensive protection from contamination and debris
- Designed to serve for a long period of time when connected
- Durable for repeated use over an extended period of time
- Design allows full flow even when not fully engaged
- Enables Disconnection under pressure
- Enables either the body, insert or both to be panel mounted
Main Specifications:
- Material: Aluminum
- Material Finish: Anodized
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: In-Line
- Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Axial Mis-alignment: 1 mm max.
- Spillage: Spillage: 0.03 cc per disconnect rated at 0 psi; 0.03 cc per disconnect rated at 120 psi; Inclusion: 0.22 cc per connect
- Bag Qty: 10
TERMINATION | IN-LINE STRAIGHT THREAD SAE |
TUBING/THREAD SIZE | 3/8 SAE-6: 9/16-181 |
SHUTOFF | BLQ6D30006 |
HEX | 7/8" |
A(Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 2.8(52.7) |
C(Connected length) | 1.68 (42.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003217 |
| Manufacturer Code | BLQ6D30006 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.028kg |
| Type | Quick Fittings |
