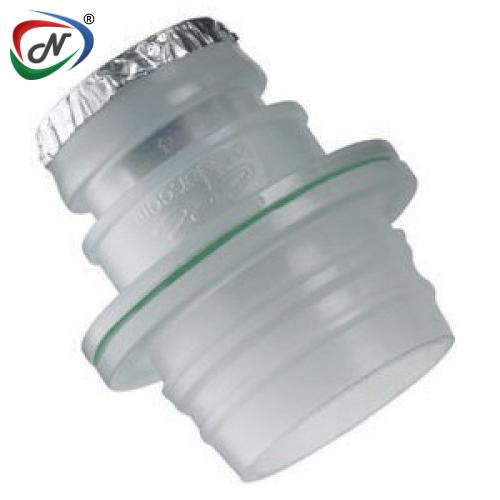

IUDCDTSN0000 IdentiQuik Snap-in 38mm Valved Cap with RFID

#NSSP005741

Product Description

IUDCDTSN0000

IdentiQuik Snap-in 38mm Valved Cap with RFID

Main Features:

  • Data exchange using RFID (Radio Frequency Identification)
  • Smart Couplings
  • “CPC Click”
  • Available in CPC’s PLC12, NS4, SMC, UDC series couplings.

Main Benefits:

  • Brand protection, fluid tracking and extended equipment life.
  • Prevent misconnections
  • Audible confirmation of connection
  • Suitable for a wide variety of materials and flow sizes

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Natural
  • Color: Translucent
  • Mounting Option: Free Floating
  • Temperature Range: 32°F - 150°F (0°C - 66°C)
  • Seal Options: EPDM, Silicone
  • Valve Spring: 302 Stainless Steel
  • Valve Option: Valved
  • Body Type: Caps & Plugs
  • Bag Qty: 10

UDC COUPLING CAPS - Polypropylene

TERMINATION

SNAP-IN 38MM

VALVED

TUBING/THREAD SIZE


METRIC EQ.

38mm

SHUTOFF

iUDCDTSN0000

A(Height/Diameter)

1 .62 (41.1)

B( Total Length)

1.76 (44.7)























*All measurements are in inches (millimetres) unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.



Note: Image is just for ref.



Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP005741
Manufacturer Code IUDCDTSN0000
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
