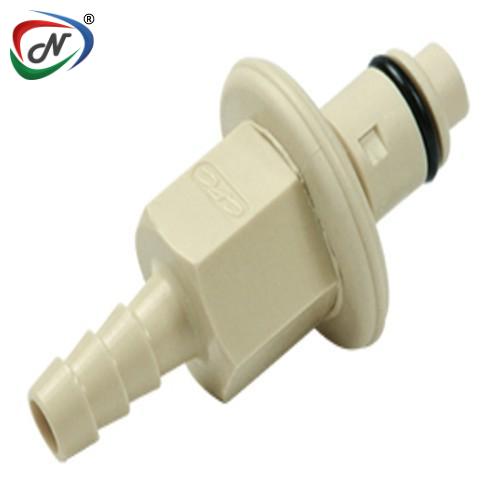

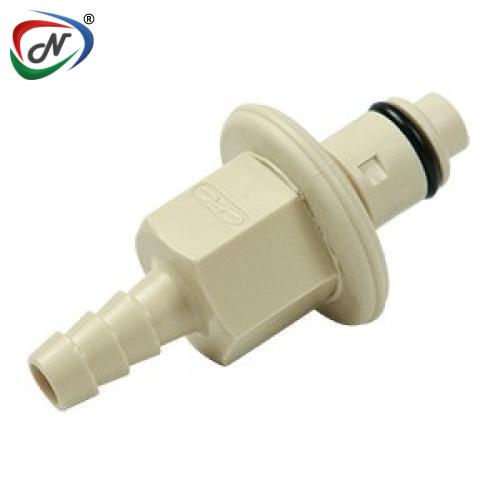

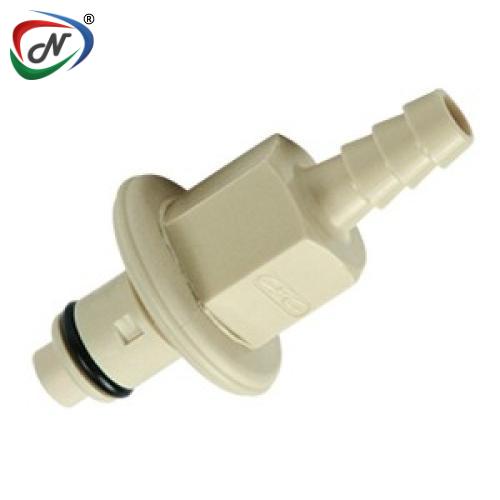

IPLCDT2200400 1/4 Hose Barb Valved In-Line Coupling Insert with RFID
#NSSP005716
Product Description
IPLCDT2200400 1/4 Hose Barb Valved In-Line Coupling Insert with RFID
Main Features:
- Data exchange using RFID (Radio Frequency Identification)
- Smart Couplings
- “CPC Click”
- Available in CPC’s PLC12, NS4, SMC, UDC series couplings.
Main Benefits:
- Brand protection, fluid tracking and extended equipment life.
- Prevent misconnections
- Audible confirmation of connection
- Suitable for a wide variety of materials and flow sizes
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Color: Almond
- Mounting Option: Free Floating
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERTS - Polypropylene
TERMINATION | IN-LINE HOSE BARB (USB INTERFACE) |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
STRAIGHT THRU | iPLCT2200400 |
SHUTOFF | iPLCDT2200400 |
A (Height/Diameter) | 1.39 (35.3) |
B (Total Length) | 2.78 (70.6) |
COUPLING INSERTS – Acetal
TERMINATION | IN-LINE HOSE BARB (RFID) |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
STRAIGHT THRU | iPLCT2200400 |
SHUTOFF | iPLCDT2200400 |
A (Height/Diameter) | 1.39 (35.3) |
B (Total Length) | 2.78 (70.6) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-PLC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005716 |
| Manufacturer Code | IPLCDT2200400 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
