LQ6D24006BLU Everis 3/8


Product Description

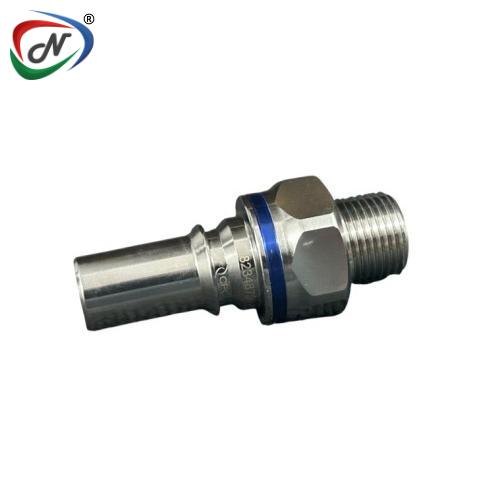

Everis 3/8" NPT Valved IN-Line Liquid Cooling Insert, Cool Blue

Main Features:

  • Non-Spill Design
  • Redundant Multi-Lobed Seals
  • High Flow Capacity with Low Pressure Drop
  • EPDM Or FKM Seals
  • Ergonomic Body and Latch Design
  • Colour Coding
  • Low Profile
  • Barbed & Threaded Terminations

Main Benefits:

  • Disconnect Under Pressure with no Spills
  • Extra Protection from Leaks over an Extended period of Time.
  • Efficient, Cost-Effective Cooling System
  • Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
  • Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
  • Instant Visual Identification of Cooling Lines.
  • Meets size requirements for Space- Constrained Electronics
  • Compatibility with various tubing options including reinforced tubing.

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Chrome with cool blue
  • Mounting Option: Thread
  • Temperature Range: 0°F - 240°F (-17°C - 115°C)
  • Seal Options: EPDM
  • Valve Spring: 302 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
  • Spillage: Spillage is 0.03 cc per disconnect at 0 psi and   0.03 cc per disconnect rated at 120 psi;  Inclusion 0.04 cc per connect
  • Weight: .1816 Ounce
  • Bag Qty: 10





3/8" NPT






1.10 (27.9)

B (Total Length)

2.41 (61.2)

C(Connected length)

0.65 (16.4)

*All measurements are in inches (millimetres) unless otherwise noted.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP003235
Manufacturer Code LQ6D24006BLU
HSN Code 84818090
Manufacturer CPC Quick Connect & Disconnect Solutions
Weight 0.088kg
Type Quick Fittings
