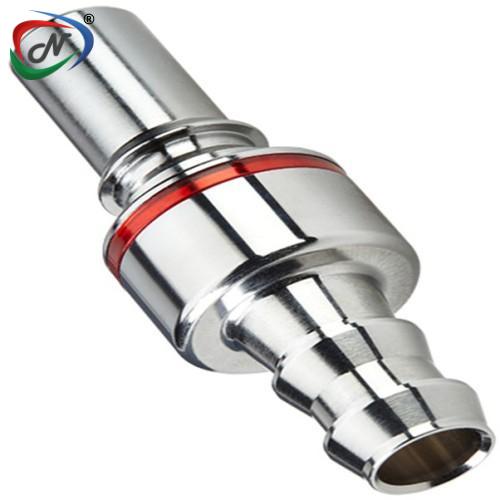

LQ6D22008LRED 1/2 Locking HB Valved In-Line Insert - Red

Name: Natron Equipment & Spares Pvt Ltd
Address: D-153/A, Okhla I Rd, Pocket D, Okhla Phase I, Okhla Industrial Estate, New Delhi, DL, 110020, IN
Telephone: 01142665166

#NSSP006482

Product Description

LQ6D22008LRED 1/2 Locking HB Valved In-Line Insert - Red

Main Features:

Non-Spill Design

Redundant Multi-Lobed Seals

High Flow Capacity with Low Pressure Drop

EPDM Or FKM Seals

Ergonomic Body and Latch Design

Colour Coding

Low Profile

Barbed & Threaded Terminations

Main Benefits:

Disconnect Under Pressure with no Spills

Extra Protection from Leaks over an Extended period of Time.

Efficient, Cost-Effective Cooling System

Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)

Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection

Instant Visual Identification of Cooling Lines.

Meets size requirements for Space- Constrained Electronics

Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Metallic with Warm Red

Mounting Option: In-Line

Temperature Range: 0°F - 240°F (-17°C - 115°C)

Seal Options: EPDM

Valve Spring: 302 Stainless Steel

Valve Option: Valved

Body Type: Inserts

Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)

Spillage: <0.025 cc per disconnect at 0 psi and <0.055 cc per disconnect rated at 120 psi; Inclusion <0.025 cc per connect

Bag Qty: 10

TERMINATION	IN-LINE LOCKING HOSE BARB
TUBING/THREAD SIZE	1/2" ID
METRIC EQ	12.7mm ID
SHUTOFF	LQ6D22008LRED
A(Height/Diameter)	1.0 (25.3)
B (Total Length)	2.91 (73.9)
C(Connected length)	0.65 (16.4)
