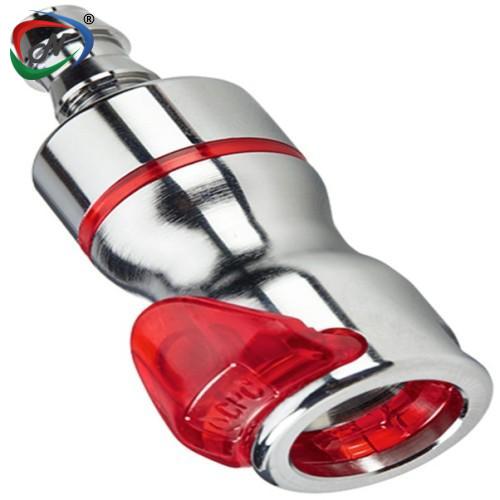

LQ6D17008LRED 1/2 Locking HB Valved In-Line Body - Red
#NSSP006468
Product Description
LQ6D17008LRED 1/2 Locking HB Valved In-Line Body - Red
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Colour Coding
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Instant Visual Identification of Cooling Lines.
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic with warm red
- Mounting Option: In-Line
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: 302 Stainless Steel
- Valve Option: Valved
- Body Type: Bodies
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect at 0 psi and <0.055 cc per disconnect rated at 120 psi; Inclusion <0.025 cc per connect
- Bag Qty: 10
TERMINATION | IN-LINE LOCKING HOSE BARB |
TUBING/THREAD SIZE | 1/2" ID |
SHUTOFF | LQ6D17008LRED |
METRIC EQ. | 12.7mm ID |
A(Height/Diameter) | 1.19 (30.1) |
B (Total Length) | 3.08 (78.2) |
C(Connected length) | 2.08 (52.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-Everis-LQ6-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006468 |
| Manufacturer Code | LQ6D17008LRED |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
