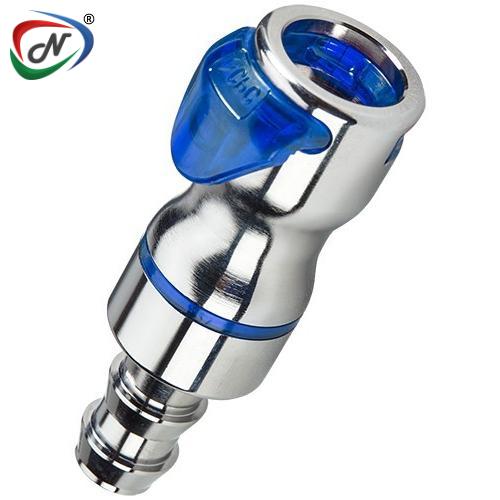

LQ6D17008LBLU 1/2 Locking HB Valved In-Line Body - Blue
#NSSP006437
Product Description
LQ6D17008LBLU 1/2 Locking HB Valved In-Line Body - Blue
Main Features:
- Non-spill design
- Redundant sealing when connected
- Color-coding
- No seal friction in connected state
- Enhanced latch design
- Lower ergonomic profile
Main Benefits:
- Disconnect under pressure with no spills
- Extra protection from leaks
- Instant visual difference in cooling lines
- Ultra-reliable protection from drips at disconnect even after long periods in connected state
- Easy to see orientation on manifolds and tubing
- Meet size requirements for space-constrained electronics
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic with Cool Blue
- Mounting Option: In-Line
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: 302 Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect at 0 psi and <0.055 cc per disconnect rated at 120 psi; Inclusion <0.025 cc per connect
- Bag Qty: 10
COUPLING BODIES - Nickel-chrome plated brass
TERMINATION | IN-LINE LOCKING HOSE BARB |
TUBING/THREAD SIZE | 1/2" ID |
METRIC EQ. | 12.7mm ID |
SHUTOFF | LQ6D17008LBLU |
A(Height/Diameter) | 1.19 (30.1) |
B (Total Length) | 3.08 (78.2) |
C (Connected Length) | 2.08 (52.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-Everis-LQ6-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006437 |
| Manufacturer Code | LQ6D17008LBLU |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
