Product Description

LQ6D17008BLU 1/2 HB Valved In-Line Body - Blue

Main Features:

Non-Spill Design

Redundant Multi-Lobed Seals

High Flow Capacity with Low Pressure Drop

EPDM Or FKM Seals

Ergonomic Body and Latch Design

Colour Coding

Low Profile

Barbed & Threaded Terminations

Main Benefits:

Disconnect Under Pressure with no Spills

Extra Protection from Leaks over an Extended period of Time.

Efficient, Cost-Effective Cooling System

Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)

Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection

Instant Visual Identification of Cooling Lines.

Meets size requirements for Space- Constrained Electronics

Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Metallic with cool blue

Mounting Option: Free Floating

Temperature Range: 0°F - 240°F (-17°C - 115°C)

Seal Options: EPDM

Valve Spring: 302 Stainless Steel

Valve Option: Valved

Body Type: Bodies

Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)

Spillage: Spillage is 0.03 cc per disconnect at 0 psi and 0.03 cc per disconnect rated at 120 psi; Inclusion 0.04 cc per connect

Bag Qty: 10

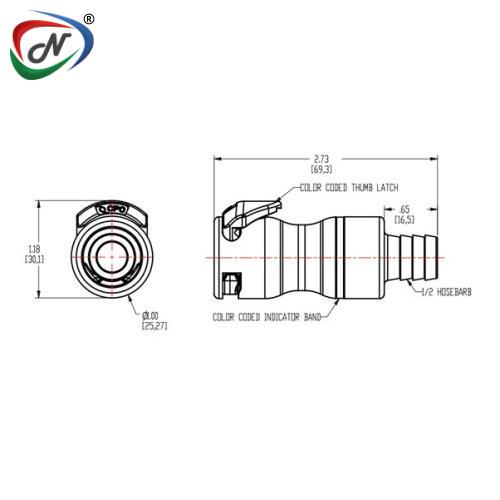

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/2" ID
SHUTOFF	LQ6D17008BLU
METRIC EQ.	12.7mm ID
A(Height/Diameter)	1.19 (30.1)
B (Total Length)	2.73 (69.3)
C(Connected length)	2.08 (52.8)
