LQ6D17006BLU Everis 3/8
#NSSP003231
Product Description
LQ6D17006BLU Everis 3/8

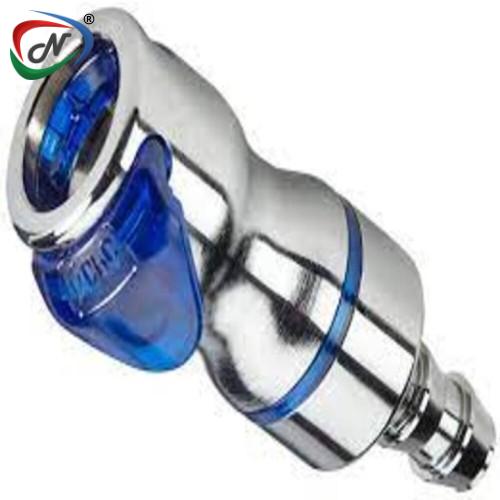

Everis 3/8" Hose Barb Valved In-Line Liquid Cooling Body, Cool Blue
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Colour Coding
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Instant Visual Identification of Cooling Lines.
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Chrome with cool blue
- Mounting Option: Free Floating
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: 302 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: Spillage is 0.03 cc per disconnect at 0 psi and 0.03 cc per disconnect rated at 120 psi; Inclusion 0.04 cc per connect
- Weight: .2479 Ounce
- Bag Qty: 10
|
TERMINATION |
IN-LINE PTF |
|
TUBING/THREAD SIZE |
3/8" ID |
|
SHUTOFF |
LQ6D17006BLU |
|
METRIC EQ. |
9.5mm ID |
|
A(Height/Diameter) |
1.19 (30.1) |
|
B (Total Length) |
2.73 (69.3) |
|
C(Connected length) |
2.08 (52.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003231 |
| Manufacturer Code | LQ6D17006BLU |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.114kg |
| Type | Quick Fittings |
