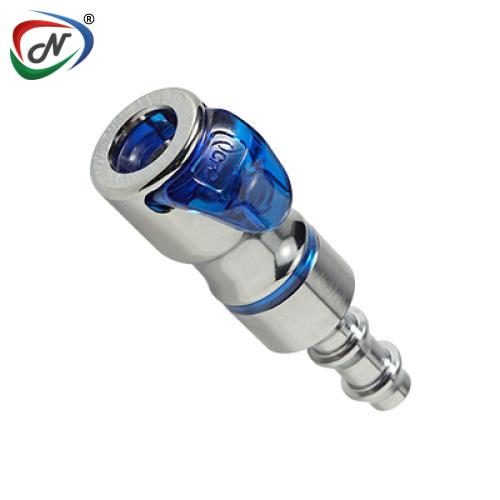

LQ2D1704LBLUV 1/4 Hose Barb Valved In-Line Body Blue, FKM Seal

#NSSP006040

Product Description

LQ2D1704LBLUV 1/4 Hose Barb Valved In-Line Body Blue, FKM Seal

Main Features:

  • Non-spill design
  • Redundant sealing when connected
  • Color-coding
  • No seal friction in connected state
  • Enhanced latch design
  • Lower, ergonomic profile

Main Benefits:

  • Disconnect under pressure with no spills
  • Extra protection from leaks
  • Instant visual difference in cooling lines
  • Ultra-reliable protection from drips at disconnect even after long periods in connected state
  • Easy to see orientation on manifolds and tubing
  • Meets size requirements for space-constrained electronics

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Metallic with cool blue
  • Mounting Option: Thread
  • Temperature Range: 0°F - 240°F (-17°C - 115°C)
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Body Type: Bodies
  • Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
  • Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
  • Bag Qty: 10
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP006040
Manufacturer Code LQ2D1704LBLUV
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
