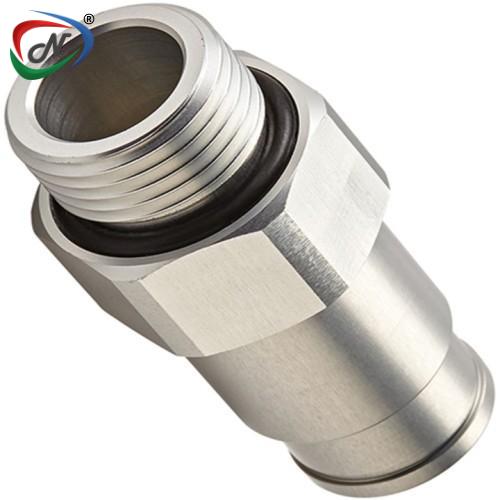

BLQ6D31008 G 1/2 Valved In-Line Body Everis BLQ6
#NSSP003915
Product Description
BLQ6D31008
G 1/2
Valved In-Line Body Everis BLQ6
Main
Features:
- Non-spill design
- Reliable seal when connected
- Non-friction valve
- High axial engagement tolerance
- Single-piece options for body & insert
- Rugged anodized aluminium
- Optional panel mount kit
Main
Benefits:
- Extensive protection from contamination and
debris
- Designed to serve for a long period of time when
connected
- Durable for repeated use over an extended period
of time
- Design allows full flow even when not fully
engaged
- Enables Disconnection under pressure
- Enables either the body, insert or both to be
panel mounted
Main
Specifications:
- Material: Aluminium
- Material Finish: Anodized
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: In-Line
- Temperature Range: 0°F - 240°F ((-17°C) -
115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Shipping/Storage Temperature Range: -40°F
to 240°F (-40°C to 115°C)
- Axial Mis-alignment: 1 mm max.
- Spillage: Spillage: 0.03 cc per disconnect
rated at 0 psi; 0.03 cc per disconnect rated at 120 psi; Inclusion: 0.22
cc per connect
- Bag Qty: 10
|
TERMINATION |
IN-LINE STRAIGHT THREAD
G / BSPP |
|
TUBING/THREAD SIZE |
G 1/22 |
|
SHUTOFF |
BLQ6D31008 |
|
HEX |
26mm |
|
A(Height/Diameter) |
1.12 (28.4) |
|
B (Total Length) |
2.26 (57.5) |
|
C(Connected length) |
1.76 (44.7) |
*All
measurements are in inches (millimetres) unless otherwise noted.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003915 |
| Manufacturer Code | BLQ6D31008 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
