EFCD24412 1/4 NPT Valved Coupling Insert

#NCPC300

Product Description

EFCD24412

1/4 NPT Valved Coupling Insert

Main Features:

High Efficiency Valve

Plastic Thumb Latch

Polypropylene Material

Compatible

Main Benefits:

More Flow in a Compact Size

Fewer Moving Parts

Chemically Resistant & Gamma Sterilizable

Mates with most APC couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Mounting Option: Free Floating

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Insert

Bag Qty: 25
COUPLING INSERT - Polypropylene

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	1/4" NPT
SHUTTOFF	EFCD24412
A(Height/Diameter)	0.72 (18.3)
B (Total Length)	1.77 (45.0)

*All measurements are in inches (millimetres) unless otherwise noted.

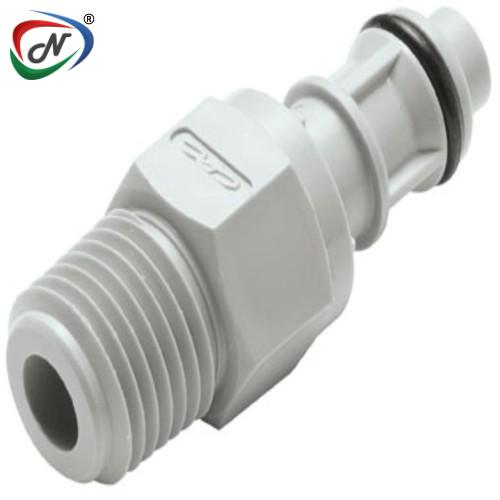

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
