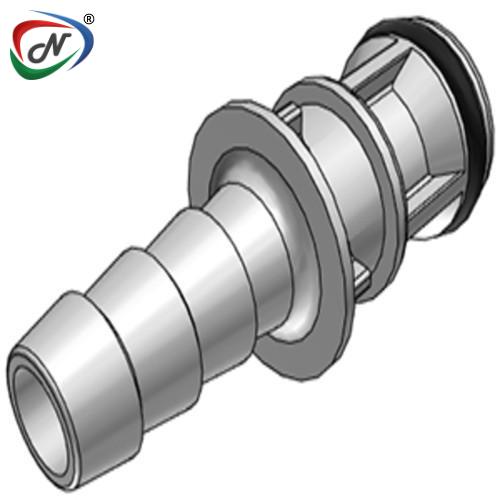

EFCD22612 3/8 Hose Barb Valved In-Line Coupling Insert

#NCPC297

Product Description

EFCD22612

3/8 Hose Barb Valved In-Line Coupling Insert

Main Features:

  • High Efficiency Valve
  • Plastic Thumb Latch
  • Polypropylene Material
  • Compatible

Main Benefits:

  • More Flow in a Compact Size
  • Fewer Moving Parts
  • Chemically Resistant & Gamma Sterilizable
  • Mates with most APC couplings

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded Grey
  • Mounting Option: Free Floating
  • Temperature Range: 32°F - 160°F (0°C - 71°C)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Bag Qty: 25

COUPLING INSERT - Polypropylene

TERMINATION

IN-LINE HOSE BARB

TUBING/

THREAD SIZE

3/8" ID

METRIC EQ

9.5mm ID

STRAIGHT THRU

EFC22612

SHUTTOFF

EFCD22612

A(Height/Diameter)

0.60/0.72 (15.2/18.3)

B (Total Length)

1.33/2.08 (33.8/52.8)




*All measurements are in inches (millimetres) unless otherwise noted.



Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC297
Manufacturer Code EFCD22612
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
